Synty Core Drop-in “Clouds” Shader

This shader replicates the cloud appearance of Synty cloud resources.

Shader code

/******************************************************************
Clouds = Synty models cloud shader for Godot.
(C) Copyright 2025 - Giancarlo Niccolai
Published under MIT licence.

# Overview

This shader replicates the cloud appearance of Synty cloud resources,
with two major limitations.

1. Godot rendering pipeline doesn't offer scene main lighting vectors;
   they can be retriecved by the script and set as shader variables.
2. Godot handles Fog differently; the fog passage in the Unity shader
   to dither distant clouds behind it is not necessary, so all the fog
   settings are removed.

## Global shader variables

This shader uses the following global variables that a script should set by
analysing the scene or explicitly declaring the charactersitics of the
environment; names should be self-explanaotry.

- vec3 MainLightDirection (added to local light_direction_override);
- vec4 SkyColor (can be overridden by top_color);
- vec4 EquatorColor (can be overridden by base_color or scattering_color in scattering computations);
- vec4 GroundColor (can be overridden by fresnel_color);

The script uses an override system: setting use_environment_override will
cause the shader to ignore the global variables. If you don't plan to use them,
feel free to reove them from the script -- they are all fetched at the begin
of the fragment() function.

NOTE: The overrides are copied from the Unity shader to maintain the behavior as close as possible.

*/

shader_type spatial;
render_mode  unshaded;

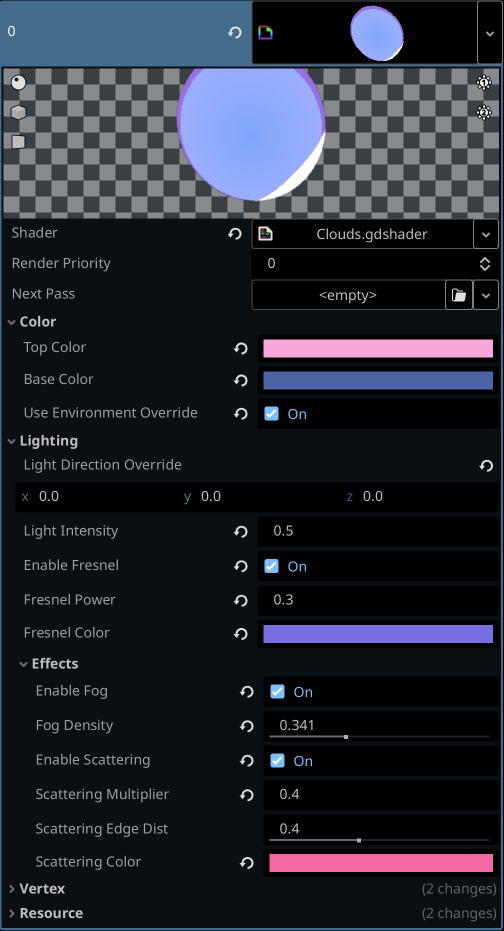

group_uniforms Color;
uniform vec4 top_color: source_color;
uniform vec4 base_color: source_color;
uniform bool use_environment_override;

group_uniforms Lighting;
uniform vec3 light_direction_override = vec3(0.5, -0.5, 0.0);
uniform float light_intensity;
uniform bool enable_fresnel;
uniform float fresnel_power;
uniform vec4 fresnel_color: source_color;

group_uniforms Lighting.Effects;
uniform bool enable_fog;
uniform float fog_density: hint_range(0.0, 1.0) = 0.4;
uniform bool enable_scattering;
uniform float scattering_multiplier;
uniform float scattering_edge_dist: hint_range(0.0, 1.0) = 0.4;
uniform vec4 scattering_color: source_color;

group_uniforms Vertex;
uniform float cloud_speed = 1.0;
uniform float cloud_strength = 0.2;

// This will be filled by the scritpt main light, eventually.
global uniform vec3 MainLightDirection;
global uniform vec4 SkyColor: source_color;
global uniform vec4 EquatorColor: source_color;
global uniform vec4 GroundColor: source_color;


float fresnel_effect(vec3 normal_ws, vec3 view_dir_ws, float power) {
    return pow(1.0 - clamp(dot(normalize(normal_ws), normalize(view_dir_ws)), 0.0, 1.0), power);
}


void vertex() {
	float displacement = cloud_strength * (sin( TIME * cloud_speed + VERTEX.x + VERTEX.z ));
	VERTEX += vec3(0.0, displacement, 0.0);
}


void fragment() {
	// World or override colors.
	// Feel free to remove the world colors if you don't need them.
	// NOTE: optimization will turn this into just one check.
	vec4 sky_color = use_environment_override ? top_color : SkyColor;
	vec4 horizon_color = use_environment_override ? base_color : EquatorColor;
	vec4 ground_color = use_environment_override ? fresnel_color : GroundColor;
	vec4 equator_scattering_color = use_environment_override ? scattering_color : EquatorColor;
	vec3 light_direction = use_environment_override ? light_direction_override :  MainLightDirection + light_direction_override;

	vec3 world_normal = (INV_VIEW_MATRIX * vec4(NORMAL, 0.0)).xyz;
	vec3 world_view = normalize(INV_VIEW_MATRIX * vec4(VIEW, 0.0)).xyz;

	float light_step = step( -light_intensity, dot(-( light_direction), world_normal));
	vec4 sky_mix_color = mix(sky_color, horizon_color, light_step) *3.0;
	if (enable_fresnel) {
		float fresnel = step(1.0 - fresnel_power, fresnel_effect(world_normal, world_view, 1.0));
	 	sky_mix_color = mix(sky_mix_color, ground_color, fresnel * light_step);
	}

	if(enable_scattering) {
		float fresnel = fresnel_effect(world_normal, world_view, scattering_edge_dist);
		vec3 scattered_light = fresnel * light_direction * scattering_multiplier;
		sky_mix_color = vec4(mix(sky_mix_color.xyz, equator_scattering_color.xyz, scattered_light), 1.0);
	}

	ALBEDO = sky_mix_color.xyz;
	ROUGHNESS = 0.0;
}

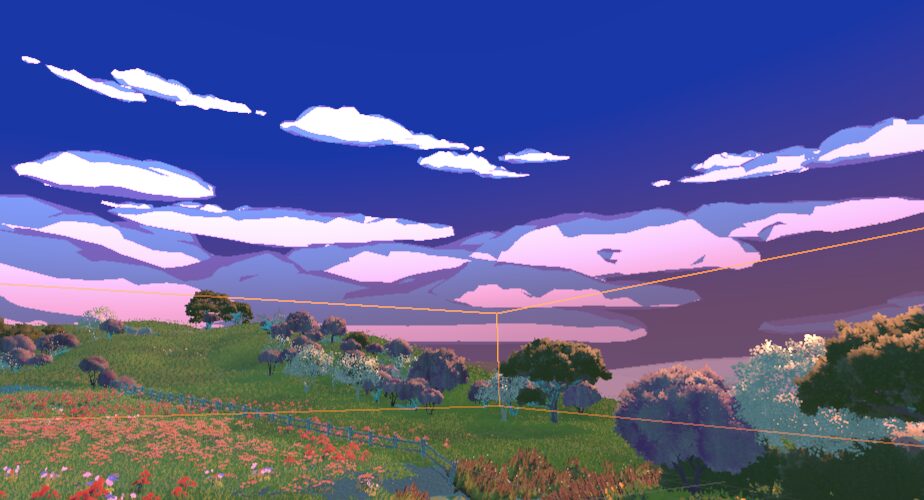

Live Preview
