Tile face circle cutout

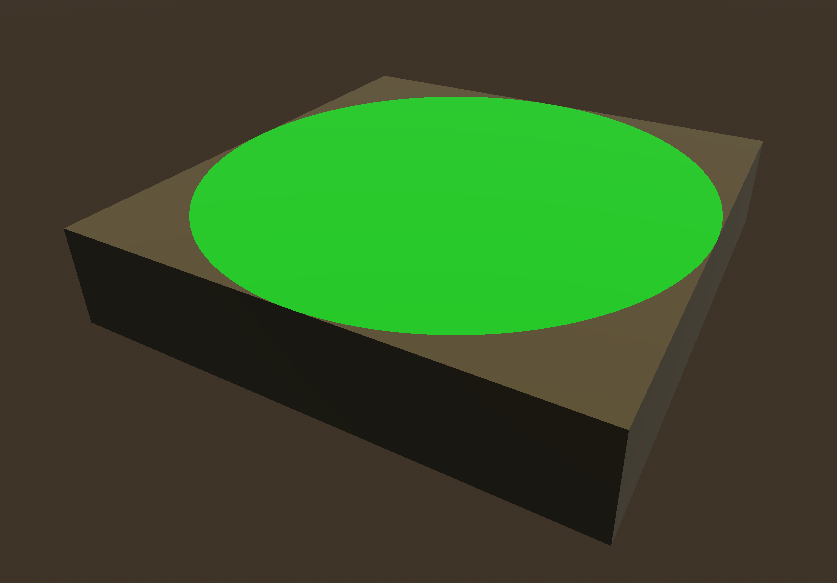

A simple circle cutout shader applied to the top face of a tile.
This is a simplified version of a tile shader I made for my game, Cuboria. It was originally designed to be used for spawning objects on tiles that grow, and a circle of grass would expand around it as it grew. Go to this video for an example on how I expanded the shader for use in my game. And to see an example test scene of the spawn tile that uses it, watch this video.
Shader code
shader_type spatial;
uniform vec4 cutout_color : source_color;
uniform vec4 base_color : source_color;
uniform float circle_size : hint_range(0.0, 1.0);
varying float is_up;
const vec3 up = vec3(0.0, 1.0, 0.0);
varying vec2 uv;
void vertex() {
vec3 normal_dir = normalize(NORMAL);
float scalar = dot(normal_dir, up);
is_up = step(0.99, scalar);
uv = UV*vec2(3.0, 2.0)*is_up + (1.0 - is_up)*UV;
}
void fragment() {
float dist = distance(uv, vec2(1.5, 1.5));
float circle = (1.0 - step(circle_size/2.0, dist));
vec4 mask = cutout_color*circle + base_color*(1.0 - circle);
ALBEDO = is_up*mask.rgb + (1.0 - is_up)*base_color.rgb;
}
