Vignette

crocoby

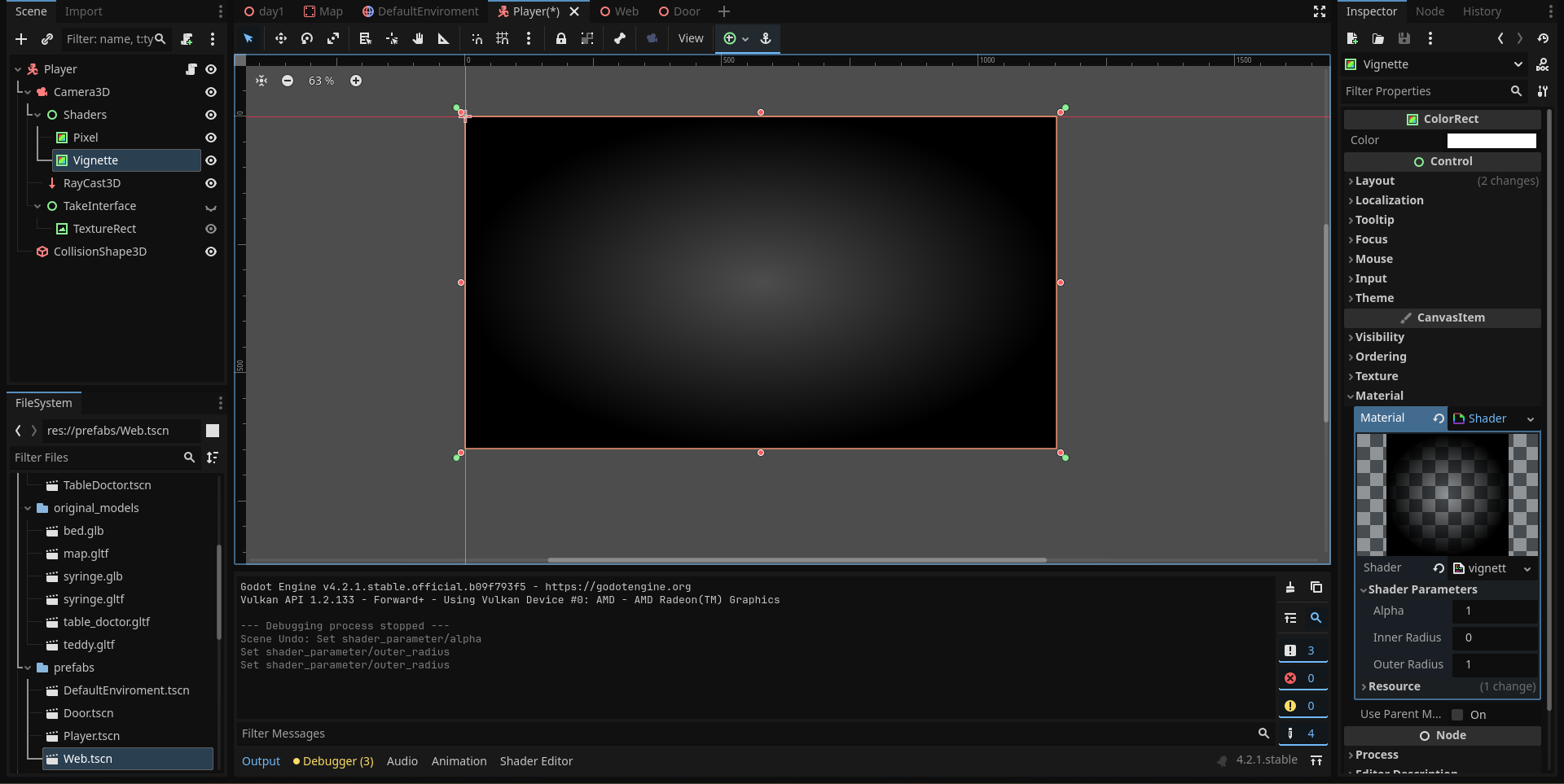

Use this for the ColorRect node. You can use it in 3D and 2D.

There are 3 parameters here:

– Transparency (“Alpha”)

– Radius of the light part of the vignette (“Inner Radius”)

– Radius of the dark part of the vignette (“Outer Radius”)

Play with the parameters to find the best one

Shader code
shader_type canvas_item;

uniform float alpha = 1.0;
uniform float inner_radius = 0.0;
uniform float outer_radius = 1.0;

void fragment() {
	float x = abs(UV.r-.5)*2.0;
	float y = abs(UV.g-.5)*2.0;
	float q = 1.0-(1.0-sqrt(x*x+y*y)/outer_radius)/(1.0-inner_radius);
	COLOR = vec4(0, 0, 0, q*alpha);
}
Live Preview
Tags
black, borders, vignette, white
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.

Related shaders

guest

2 Comments
Oldest
Newest Most Voted
QueenOfSquiggles
QueenOfSquiggles
2 years ago

Hey thanks for sharing this shader! I’m using the logic in my project with some slight modifications. Just sharing it back in case you consider it an improvement. Also of note, I am using it as a secondary function so I can easily enable/disable individual effects as needed for my game.

vec4 vignette(vec4 p_color, vec2 uv) {

    vec2 pos = abs(uv - vec2(0.5)) * 2.0;
    float q = (1.0 - length(pos) / vignette_outer_radius) / (1.0 - vignette_inner_radius);
    float factor = q * vignette_alpha;
    vec3 n_color = p_color.rgb * factor;
    return vec4(n_color, p_color.a);
}
