3D Lightning shader

3D version of FencerDevLog Lightning shader with transparency.

Shader code

shader_type spatial;
render_mode cull_disabled;

uniform vec3 Main_Color : source_color = vec3(1.0);
uniform vec3 Effect_Color : source_color = vec3(0.3, 0.3, 1.0);

uniform int Octave_Count : hint_range(1, 20) = 10;
uniform float Amp_Start = 0.5;
uniform float Amp_Coeff = 0.5;
uniform float Freq_Coeff = 2.0;
uniform float Speed = 3.0;

uniform float Y_Size = 4.0;
uniform float X_Size = 1.0;

uniform float Emission_Power = 2.0;
uniform sampler2D Power_Texture : source_color;

float Hash12(vec2 UV_)
{
	return fract(cos(mod(dot(UV_, vec2(13.9898, 8.141)), 3.14)) * 43758.5453);
}

vec2 Hash22(vec2 UV_)
{
	UV_ = vec2(dot(UV_, vec2(127.1,311.7)),
	dot(UV_, vec2(269.5,183.3)));
	return 2.0 * fract(sin(UV_) * 43758.5453123);
}

float Noise(vec2 UV_)
{
	vec2 IUV = floor(UV_);
	vec2 FUV = fract(UV_);
	vec2 Blur = smoothstep(0.0, 1.0, FUV);

	float A = dot(Hash22(IUV + vec2(0.0,0.0)), FUV - vec2(0.0,0.0));
	float B = dot(Hash22(IUV + vec2(1.0,0.0)), FUV - vec2(1.0,0.0));
	float C = dot(Hash22(IUV + vec2(0.0,1.0)), FUV - vec2(0.0,1.0));
	float D = dot(Hash22(IUV + vec2(1.0,1.0)), FUV - vec2(1.0,1.0));

	float Mix_X1 = mix(A, B, Blur.x);
	float Mix_X2 = mix(C, D, Blur.x);

	return mix(Mix_X1, Mix_X2, Blur.y) + 0.5;
}

float FBM(vec2 UV_)
{
	float Value = 0.0;
	float Amplitude = Amp_Start;

	for (int Index = 0; Index < Octave_Count; Index++)
	{
		Value += Amplitude * Noise(UV_);
		UV_ *= Freq_Coeff;
		Amplitude *= Amp_Coeff;
	}

	return Value;
}

void fragment()
{
	float Power_Value = texture(Power_Texture, UV).r;

	vec2 Modified_UV = 2.0 * UV - 1.0;
	Modified_UV.y *= Y_Size;
	Modified_UV.x *= X_Size;

	Modified_UV.x -= Amp_Start;
	Modified_UV += FBM(Modified_UV + TIME * Speed);
	Modified_UV.x += 0.5 - Amp_Coeff;

	float Dist = abs(Modified_UV.x);

	vec3 Final_Color = Effect_Color * mix(0.0, 0.05, Hash12(vec2(TIME))) / Dist;

	ALBEDO = Final_Color * Main_Color;
	EMISSION = ALBEDO * Emission_Power;
	ALPHA = Final_Color.r;
}

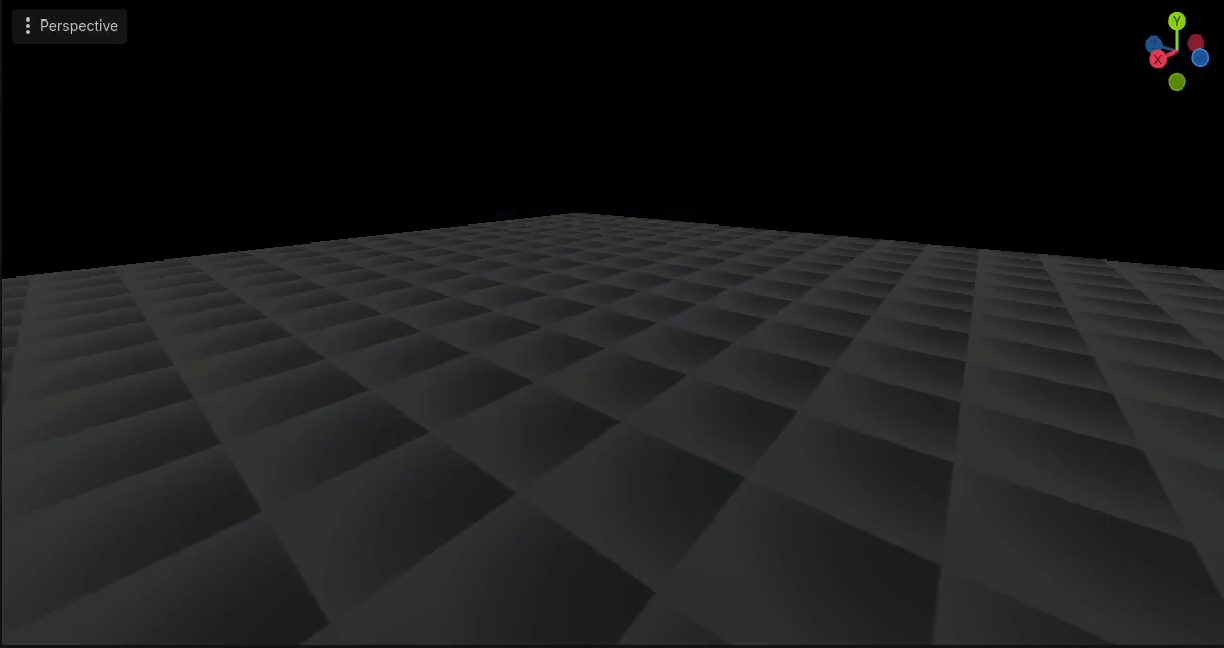

Live Preview
