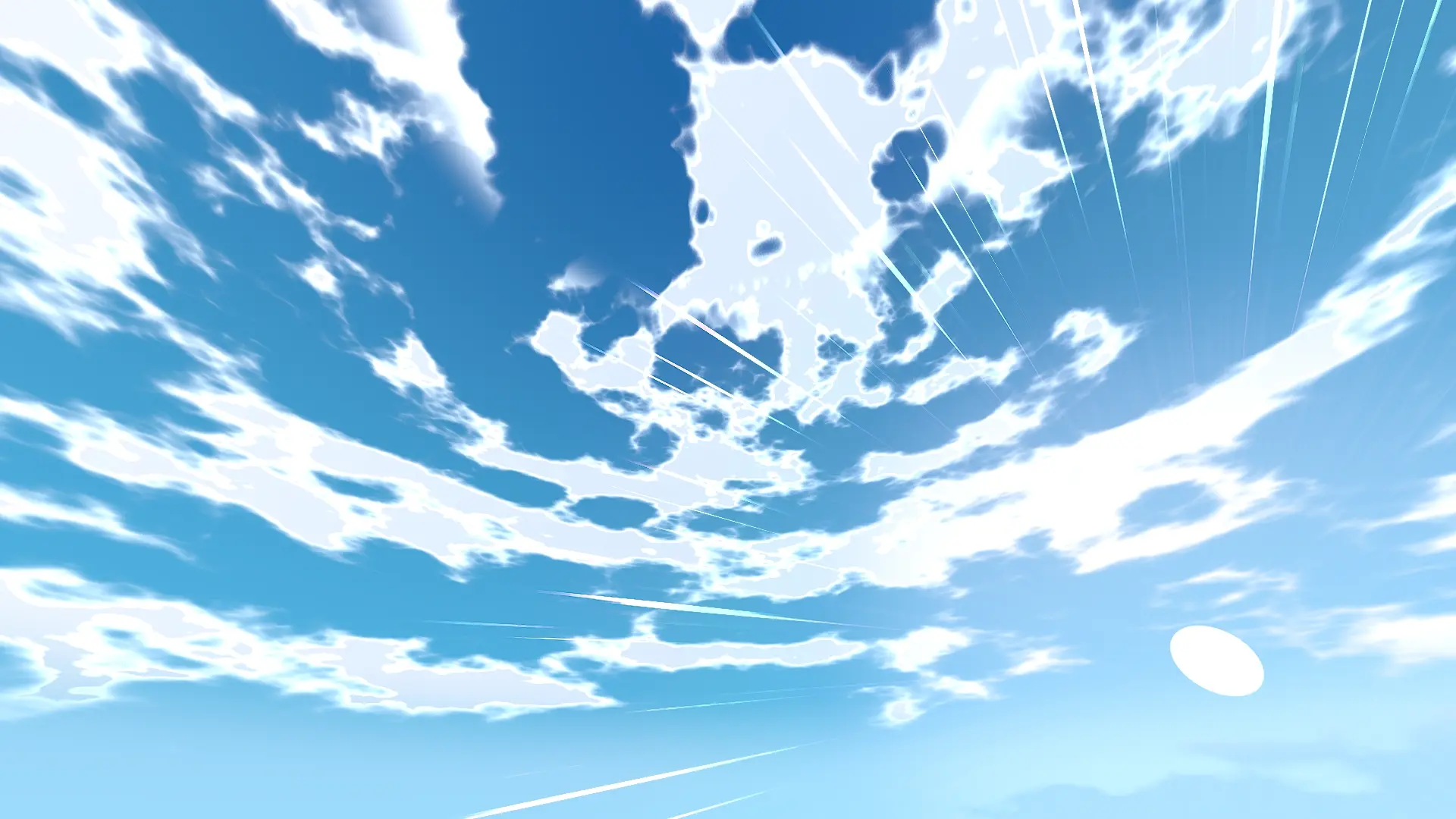

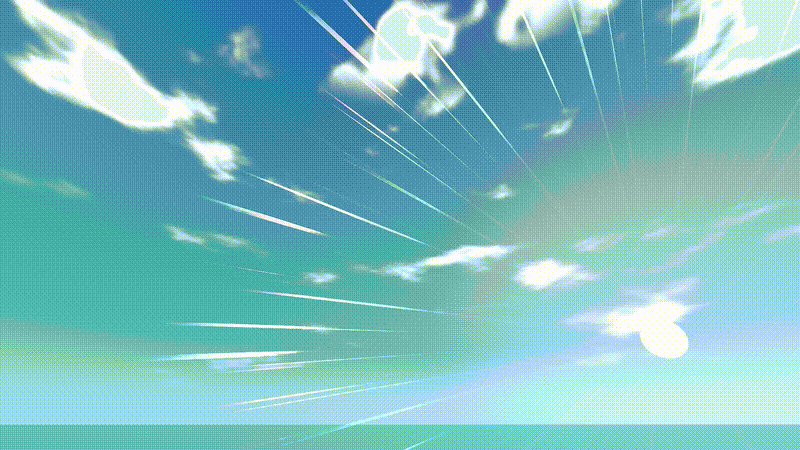

Anime Style Sky Shader
A highly configurable anime-style sky shader for Godot, with a wide range of options for customizing its appearance.
To get the best results, cloud textures should be created correctly in Godot using FastNoiseLite. For a better understanding of how to create the noise textures and how the shader works, check out my YouTube tutorial, where everything is explained in detail.
An example project is also available on my GitHub.
Hope you’ll like🌞
Shader code
shader_type sky;
#define USE_TOP_COVER 1
group_uniforms background;
uniform vec4 back_color_top : source_color = vec4(0.12, 0.40, 0.66, 1.0);
uniform vec4 back_color_bottom : source_color = vec4(0.34, 0.75, 0.92, 1.0);
group_uniforms sun;
uniform float sun_size : hint_range(0.0, 0.1, 0.0001) = 0.001;
uniform float sun_softness : hint_range(0.0, 1.0) = 0.1;
uniform float sun_glow_size : hint_range(0.0, 0.9) = 0.2;
uniform vec3 sun_color : source_color = vec3(1.0, 1.0, 1.0);
uniform vec4 sun_glow_color : source_color = vec4(1.0, 1.0, 1.0, 0.15);
group_uniforms horizon;
uniform float hor_height_min : hint_range(0.0, 0.8) = 0.05;
uniform float hor_height_max : hint_range(0.1, 0.9) = 0.2;
uniform vec4 hor_color_mix : source_color = vec4(1.0, 1.0, 1.0, 0.125);
uniform vec4 hor_color_add : source_color = vec4(1.0, 1.0, 1.0, 0.125);
group_uniforms cloud_shape;
uniform sampler2D cloud_hor_tex : repeat_enable; // horizon
uniform float cloud_hor_start : hint_range(0.1, 0.8) = 0.25;
uniform float cloud_hor_end : hint_range(0.2, 0.9) = 0.5;
uniform vec2 cloud_hor_scale = vec2(2.0, 2.0); // use integer values for U/X value
#if USE_TOP_COVER
uniform sampler2D cloud_top_tex : repeat_enable; // top
uniform float cloud_top_start : hint_range(0.1, 0.8) = 0.6;
uniform float cloud_top_end : hint_range(0.2, 0.9) = 0.7;
uniform float cloud_top_scale = 0.5;
#endif
uniform float clouds_power : hint_range(0.5, 10.0) = 3.0;
uniform float cloud_transtion_start : hint_range(0.1, 0.8) = 0.8;
uniform float cloud_transtion_end : hint_range(0.2, 0.9) = 0.9;
group_uniforms cloud_colors;
uniform vec3 cloud_color_bright : source_color = vec3(1.0, 1.0, 1.0);
uniform vec3 cloud_color_dark : source_color = vec3(0.8, 0.9, 1.0);
uniform vec3 cloud_color_edges_mix : source_color = vec3(1.0, 1.0, 1.0);
uniform vec3 cloud_color_edges_add : source_color = vec3(1.0, 1.0, 1.0);
uniform float cloud_edges : hint_range(0.1, 1.0) = 0.9;
group_uniforms cloud_motion;
uniform float hor_speed = 0.1;
uniform float hor_layer0_speed_mult : hint_range(-1.0, 1.0) = 0.05;
uniform float hor_layer1_speed_mult : hint_range(-1.0, 1.0) = 0.10;
#if USE_TOP_COVER
uniform float top_speed = 0.05;
#endif
#if USE_TOP_COVER
// taken from godotshaders :)
vec2 rotate_uvs(vec2 uv, vec2 pivot, float angle)
{
mat2 rotation = mat2(vec2(sin(angle), -cos(angle)),
vec2(cos(angle), sin(angle)));
uv -= pivot;
uv = uv * rotation;
uv += pivot;
return uv;
}
#endif
vec2 eyedir_to_cylindrical_uv_mapping(vec3 dir, vec2 scale) {
float u = -fract(((atan(dir.x, dir.z) + PI) / TAU) * scale.x);
float v = -dir.y * 0.5 * scale.y;
return vec2(u, v);
}
void sky() {
// get background color
vec4 background_color = mix(back_color_bottom, back_color_top, abs(EYEDIR.y));
vec3 sky_final = background_color.rgb;
// sky or floor?
if (EYEDIR.y > 0.0) {
// the sun is easy to calculate thanks to the dot product between EYEDIR and LIGHT0_DIRECTION
float eye_dot = dot(EYEDIR, LIGHT0_DIRECTION);
float sun_dot = max(0.0, eye_dot);
float inv_sun_size = clamp(1.0 - sun_size, 0.0, 1.0);
float sun = smoothstep(inv_sun_size, inv_sun_size + (sun_size * sun_softness), sun_dot);
float sun_glow = smoothstep(inv_sun_size - sun_glow_size, inv_sun_size, sun_dot);
// get top uvs
#if USE_TOP_COVER
vec2 uv_top = vec2(EYEDIR.x, -EYEDIR.z);
uv_top = rotate_uvs(uv_top, vec2(0.0), TIME * 0.525 * top_speed);
#endif
// get cylindrical uvs
vec2 uv_cyl_a = eyedir_to_cylindrical_uv_mapping(EYEDIR, cloud_hor_scale);
vec2 uv_cyl_b = uv_cyl_a;
uv_cyl_a.x += TIME * hor_layer0_speed_mult * hor_speed;
uv_cyl_b.x += TIME * hor_layer1_speed_mult * hor_speed;
// sample top and cyl
#if USE_TOP_COVER
float col_top_val = textureLod(cloud_top_tex, uv_top * cloud_top_scale, 0).r;
col_top_val = smoothstep(cloud_top_start, cloud_top_end, col_top_val);
vec4 col_top = vec4(1.0, 1.0, 1.0, col_top_val);
#endif
float cloud_hor_val_a = textureLod(cloud_hor_tex, uv_cyl_a, 0).r;
float cloud_hor_val_b = textureLod(cloud_hor_tex, uv_cyl_b, 0).r;
float cloud_hor_val = smoothstep(cloud_hor_start, cloud_hor_end, cloud_hor_val_a * cloud_hor_val_b);
vec4 col_cyl = vec4(1.0, 1.0, 1.0, cloud_hor_val);
// horizon or top?
float cloud_mix = smoothstep(cloud_transtion_start, cloud_transtion_end, abs(EYEDIR.y));
#if USE_TOP_COVER
vec4 clouds = mix(col_cyl, col_top, cloud_mix);
#else
vec4 clouds = mix(col_cyl, vec4(0.0), cloud_mix);
#endif
// power clouds
clouds.a = pow(clouds.a, clouds_power);
// give cloud details
float cloud_detail_val = smoothstep(cloud_edges, 1.0, clouds.a);
clouds.rgb = mix(cloud_color_edges_mix, clouds.rgb, cloud_detail_val);
clouds.rgb += mix(cloud_color_edges_add, vec3(0.0), cloud_detail_val);
// cloud color based on sun direction
float cloud_color_val = (eye_dot + 1.0) * 0.5;
clouds.rgb = mix(clouds.rgb * cloud_color_bright, clouds.rgb * cloud_color_dark, cloud_color_val);
// change cloud color if the sun is just back
clouds.rgb = mix(clouds.rgb, cloud_color_bright, sun_glow);
// get horizon value
float horizon_val = smoothstep(hor_height_min, hor_height_max, EYEDIR.y);
float horizon_val_inv = clamp(1.0 - horizon_val, 0.0, 1.0);
// remove clouds in the horizon
clouds.rgb = mix(sky_final.rgb, clouds.rgb, horizon_val);
// draw the sun (over the ceil color)
sky_final.rgb += vec3(sun_color * sun);
// draw sun glow
sky_final += vec3(sun_glow_color.rgb) * sun_glow * sun_glow_color.a;
// mix clouds
sky_final = mix(sky_final, clouds.rgb, clouds.a);
// draw horizon color
sky_final.rgb = mix(sky_final.rgb, hor_color_mix.rgb, hor_color_mix.a * horizon_val_inv);
sky_final.rgb += hor_color_add.rgb * hor_color_add.a * horizon_val_inv;
}
// output final result
COLOR = sky_final;
}
