N64 RDP Color-Combiner System

Purpbatboi2i

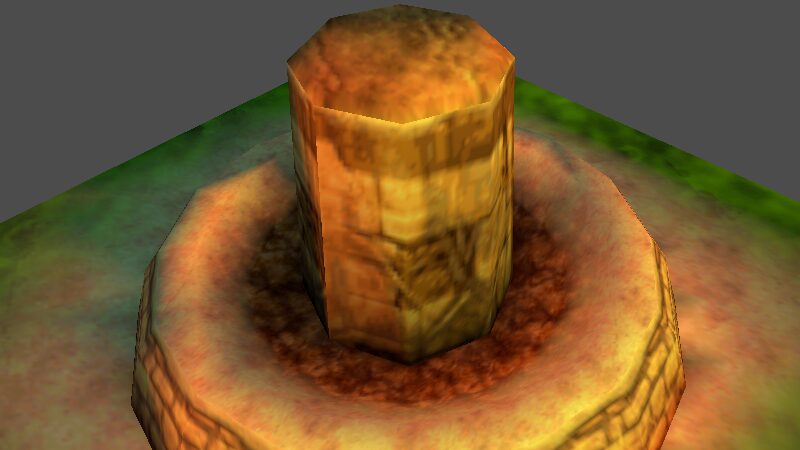

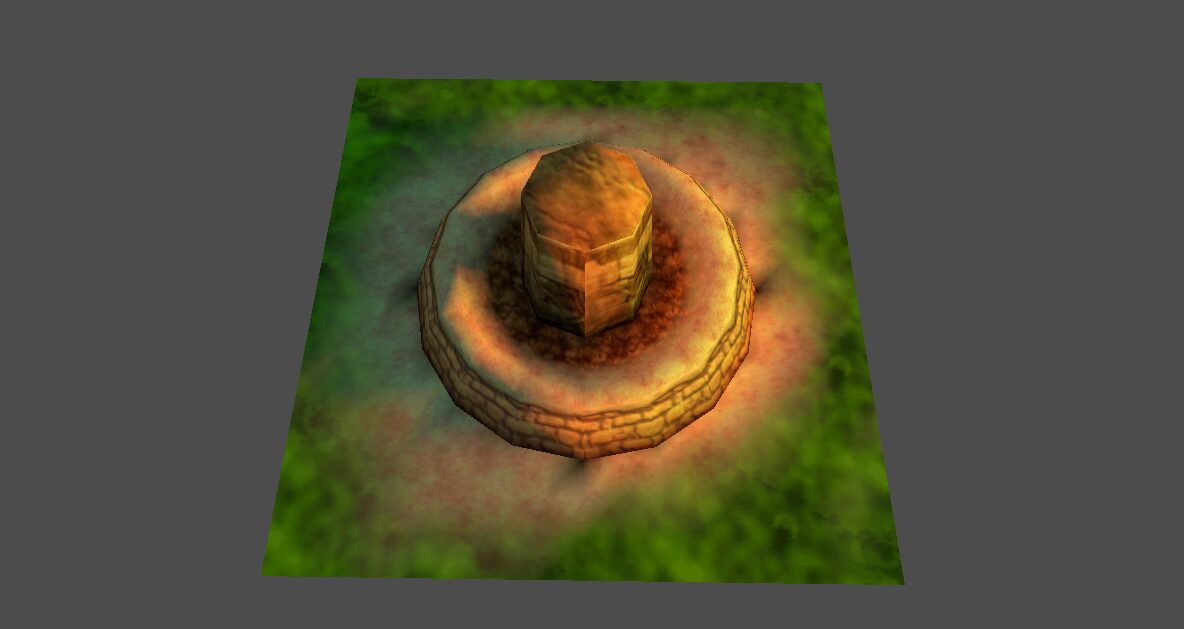

This shader faithfully reproduces the Nintendo 64’s RDP Color Combiner pipeline.

It supports the whole “(A-B) * C + D” combiner formula across both 1-Cycle and 2 Cycle-modes. with all the standard Color and Alpha inputs including Texture 0/1, Primitive, Shade (Vertex Color) Enviroment, Combined, Noise, LOD Fraction, Primitive LOD Fraction, and Chroma key center/scale.

Also includes the N64’s iconic texture filtering methods, as well full tile descriptor emulation – wrapping, mirroring, clamping, scale and offset – for both texture slots. Additional features include texture atlas sub-region support, color quantization (3/4 bit), grayscale texture modes,  texture coordinate generation from normals (environment/matcap) and screen-space LOD fraction approx.

How to use:

1. Create a new “shader material” in godot and assign  a “.gdshader” that includes the shaderinclude code

2. In your gdshader , call “n64comb_vertex_data” and “n64comb_fragment” in their respective points. See the shader below for an working example.

shader_type spatial;

render_mode unshaded, cull_disabled, draw_depth_opaque

#include "n64comb.gdshaderinc"

void vertex(){
N64CombVertexData = n64comb_vertex_data(NORMAL, COLOR, UV, VIEW_MATRIX, VIEW_NORMAL_MATRIX);

cc_shade = v.cc_shade;

uv = v.uv;

tileSize = v.tileSize;
}

void fragment() {
 vec4 result = n64comb_fragment(SCREEN_UV);
 ALBEDO = result.rgb;
}

3. Assign your texture(s) to the **Texture0** and/or **Texture1** slots in the inspector.

Glossary

Color Combiner
The N64’s per-pixel color math unit. It computes `(A – B) × C + D` to produce the final pixel color and alpha. Each of A, B, C, D can be set to different inputs.

Cycle 0 / Cycle 1
The N64 can run the combiner formula once (1-cycle) or twice (2-cycle). In 2-cycle mode, the output of Cycle 0 becomes the “Combined” input available in Cycle 1.

Combined
The result of the previous combiner cycle. In Cycle 0 this is black (0,0,0,0). In Cycle 1 this is whatever Cycle 0 produced.

Prim (Primitive Color)
A constant RGBA color set per-material. Used for tinting, coloring, or blending.

Env (Environment Color)
A second constant RGBA color. Often used for environment-based tinting or as a secondary blend color.

Shade
The interpolated vertex color. On the N64 this comes from per-vertex lighting or vertex colors. In this shader, it’s the mesh’s `COLOR` attribute.

LOD Frac
A 0–1 value computed from how many texels each screen pixel covers. Higher values mean the surface is farther away or more angled. Can be used in the combiner to blend between textures based on distance.

Prim LOD Frac
A manually set 0–1 value (via the `prim_lod_frac` uniform) that acts like LOD Frac but is controlled by you rather than computed from screen-space.

Chroma Key Center
An RGB color used as the center of a chroma key (color-based transparency) operation. Available as a Color B input.

Chroma Key Scale
An RGB scale factor for chroma keying. Available as a Color C input.

Mask
The wrap size in texels per axis. The texture repeats every `Mask` pixels. If `Mask` is 0, wrapping is disabled and the texture clamps.

Clamp
When enabled, UVs are clamped to the tile edges instead of wrapping. The edge texel is repeated.

Mirror
When enabled, the texture flips direction every other repetition, creating a seamless mirror pattern.

Scale
UV multiplier (tile rate). A value of 2.0 means the texture repeats twice across the surface.

Offset
Shifts the texture in pixel space.

Tex Gen

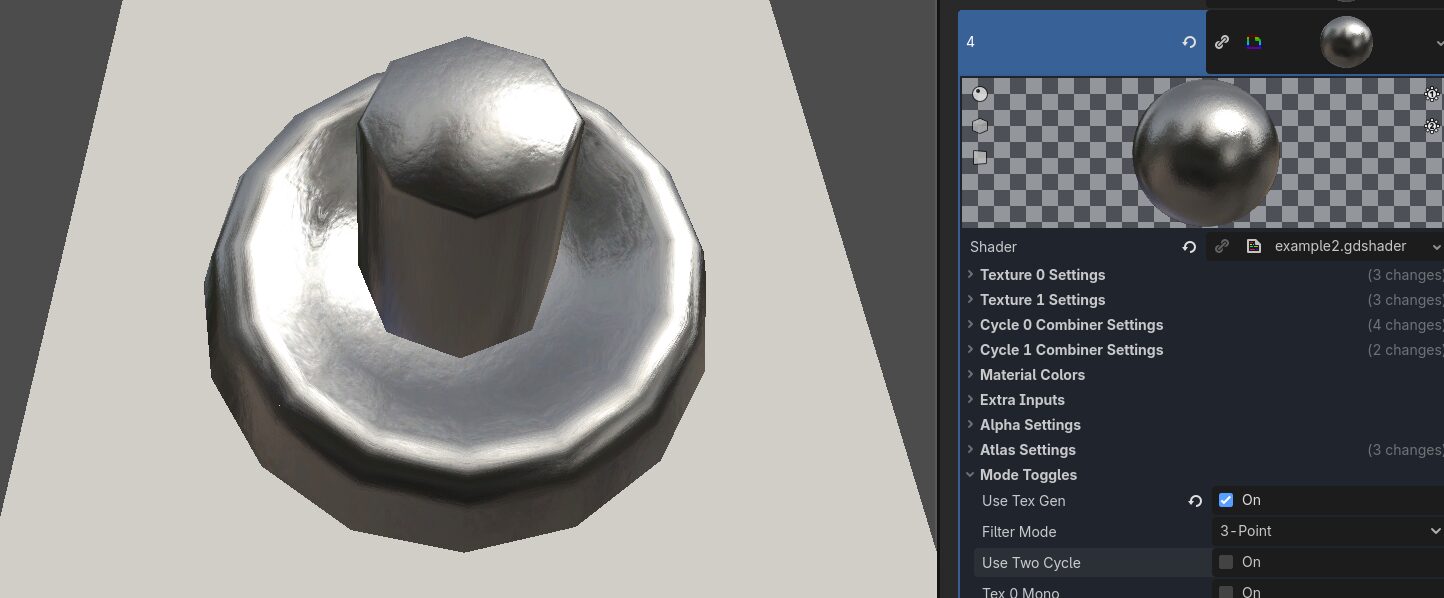

Generates UVs from the surface normal projected to screen space, creating an environment/chrome mapping effect.

3-Point Filtering
The N64’s unique texture filtering method. Instead of bilinear (4-sample square), it interpolates a triangle of 3 samples, giving the characteristic “blurry but slightly sharper” N64 look.

Quantize (3-bit / 4-bit)
Reduces texture color precision to simulate N64 texture formats like I4 or RGBA16.

Mono
Forces a texture to grayscale by using only the red channel. Simulates intensity (I4/I8) texture formats.



Combiner Quick Reference
Each cycle computes:

Color = (ColorA – ColorB) × ColorC + ColorD
Alpha = (AlphaA – AlphaB) × AlphaC + AlphaD

Common combiner setups:
Texture only     :  A = Tex0      B = 0    C = 0        D = Tex0
Tex × Shade      :  A = Tex0      B = 0    C = Shade    D = 0
Tex × Prim       :  A = Tex0      B = 0    C = Prim     D = 0
Lerp Tex0↔Tex1 by Env Alpha     :  A = Tex0      B = Tex1 C = Env Alpha D = Tex1
Tex tinted by Env:  A = Tex0      B = 0    C = Env      D = 0

Atlas Mode

If your textures are packed in an atlas:

1. Set **Texture0** to the full atlas image.
2. Set `atlas_region_0` to the sub-tile size in pixels, e.g. `(32, 32)`.
3. Set `atlas_offset_0` to the top-left corner of the tile in the atlas, e.g. `(64, 128)`.
4. Use `atlas_seam_hiding` (integer texel inset) or `atlas_seam_zoom` (fractional UV inset) to prevent bleeding from adjacent tiles.

Wrapping, mirroring, clamping, scale, and offset all operate within the sub-region rather than the full atlas.


Differences from the Original F64-render GLSL

This port is designed to work within Godot’s rendering pipeline rather than a custom OpenGL renderer. The following original features are intentionally omitted, as Godot handles them natively or they fall outside the scope of the combiner:

RDP Blender unit — Transparency blending, fog, and framebuffer operations are handled by Godot’s built-in render pipeline and material blend modes.
Vertex lighting — N64-style per-vertex lighting (ambient + 2 directional lights) is replaced by Godot’s native lighting system or pre-baked vertex colors.
Flat shading — Handled at the mesh import level in Godot rather than in-shader.
Gamma correction — The original performed linear↔gamma conversions around the combiner math; this port operates directly in Godot’s color space.
Per-pixel depth/color atomics — Manual depth buffer management with shader interlocks for decal and transparency ordering is unnecessary under Godot’s depth pipeline.
Depth quantization — 16-bit RDP-style depth rounding is omitted
K4/K5 YUV constants — YUV texture conversion inputs are not supported, as YUV textures are not used.
Decal/alpha-blend draw flags — Decal depth handling and alpha-blend depth write suppression are managed by Godot’s rendering modes.


License
This shader is licensed under the MIT License. Based on F64-render by Max Bebök, also licensed under MIT.

Update:
Added scrolling options for both texture inputs

Shader code
// CC Color inputs
const int CC_C_1             = 1;
const int CC_C_COMB          = 2;
const int CC_C_TEX0          = 3;
const int CC_C_TEX1          = 4;
const int CC_C_PRIM          = 5;
const int CC_C_SHADE         = 6;
const int CC_C_ENV           = 7;
const int CC_C_COMB_ALPHA    = 10;
const int CC_C_TEX0_ALPHA    = 11;
const int CC_C_TEX1_ALPHA    = 12;
const int CC_C_PRIM_ALPHA    = 13;
const int CC_C_SHADE_ALPHA   = 14;
const int CC_C_ENV_ALPHA     = 15;
const int CC_C_LOD_FRAC      = 16;
const int CC_C_PRIM_LOD_FRAC = 17;
const int CC_C_NOISE         = 18;
	const int CC_C_CHROMA_KEY_CENTER = 19;
	const int CC_C_CHROMA_KEY_SCALE  = 20;

// CC Alpha inputs
const int CC_A_1             = 1;
const int CC_A_COMB          = 2;
const int CC_A_TEX0          = 3;
const int CC_A_TEX1          = 4;
const int CC_A_PRIM          = 5;
const int CC_A_SHADE         = 6;
const int CC_A_ENV           = 7;
const int CC_A_LOD_FRAC      = 8;
const int CC_A_PRIM_LOD_FRAC = 9;

// Per-slot UI index -> CC constant lookup tables.
// Each slot exposes only the inputs valid for that position per the N64 RDP spec.
//
// Color A:  Combined, Tex0, Tex1, Prim, Shade, Env, 1, Noise, 0  (9 options)
const int CC_COLOR_A_TABLE[9] = int[](CC_C_COMB, CC_C_TEX0, CC_C_TEX1, CC_C_PRIM, CC_C_SHADE, CC_C_ENV, CC_C_1, CC_C_NOISE, 0);
	// Color B:  Combined, Tex0, Tex1, Prim, Shade, Env, Chroma Key Center, 0  (8 options)
	const int CC_COLOR_B_TABLE[8] = int[](CC_C_COMB, CC_C_TEX0, CC_C_TEX1, CC_C_PRIM, CC_C_SHADE, CC_C_ENV, CC_C_CHROMA_KEY_CENTER, 0);
	// Color C:  Combined, Tex0, Tex1, Prim, Shade, Env, Chroma Key Scale, Comb Alpha,
	//           Tex0 Alpha, Tex1 Alpha, Prim Alpha, Shade Alpha, Env Alpha,
	//           LOD Frac, Prim LOD Frac, 0  (16 options)
	const int CC_COLOR_C_TABLE[16] = int[](CC_C_COMB, CC_C_TEX0, CC_C_TEX1, CC_C_PRIM, CC_C_SHADE, CC_C_ENV, CC_C_CHROMA_KEY_SCALE, CC_C_COMB_ALPHA, CC_C_TEX0_ALPHA, CC_C_TEX1_ALPHA, CC_C_PRIM_ALPHA, CC_C_SHADE_ALPHA, CC_C_ENV_ALPHA, CC_C_LOD_FRAC, CC_C_PRIM_LOD_FRAC, 0);
// Color D:  Combined, Tex0, Tex1, Prim, Shade, Env, 1, 0          (8 options)
const int CC_COLOR_D_TABLE[8] = int[](CC_C_COMB, CC_C_TEX0, CC_C_TEX1, CC_C_PRIM, CC_C_SHADE, CC_C_ENV, CC_C_1, 0);

// Alpha A/B/D: Comb Alpha, Tex0 Alpha, Tex1 Alpha, Prim Alpha, Shade Alpha, Env Alpha, 1, 0  (8 options)
const int CC_ALPHA_ABD_TABLE[8] = int[](CC_A_COMB, CC_A_TEX0, CC_A_TEX1, CC_A_PRIM, CC_A_SHADE, CC_A_ENV, CC_A_1, 0);
// Alpha C:  LOD Frac, Comb Alpha, Tex0 Alpha, Tex1 Alpha, Prim Alpha, Shade Alpha, Env Alpha, Prim LOD Frac, 0  (9 options)
const int CC_ALPHA_C_TABLE[9]  = int[](CC_A_LOD_FRAC, CC_A_COMB, CC_A_TEX0, CC_A_TEX1, CC_A_PRIM, CC_A_SHADE, CC_A_ENV, CC_A_PRIM_LOD_FRAC, 0);

int cc_color_a_from_ui(int idx) { return CC_COLOR_A_TABLE[clamp(idx, 0, 8)]; }
	int cc_color_b_from_ui(int idx) { return CC_COLOR_B_TABLE[clamp(idx, 0, 7)]; }
	int cc_color_c_from_ui(int idx) { return CC_COLOR_C_TABLE[clamp(idx, 0, 15)]; }
	int cc_color_d_from_ui(int idx) { return CC_COLOR_D_TABLE[clamp(idx, 0, 7)]; }
	int cc_alpha_abd_from_ui(int idx) { return CC_ALPHA_ABD_TABLE[clamp(idx, 0, 7)]; }
	int cc_alpha_c_from_ui(int idx)   { return CC_ALPHA_C_TABLE[clamp(idx, 0, 8)]; }

group_uniforms Texture0_Settings;
		/** Texture 0 source image. */
		uniform sampler2D Texture0 : source_color;
		/** Tex0 wrap mask in pixels (x,y). */
		uniform vec2 Texture0_Mask;
		/** Tex0 UV scale (tile rate). */
		uniform vec2 Texture0_Scale;
		/** Tex0 UV offset (pixel-space pan). */
		uniform vec2 Texture0_Offset;
		/** Clamp Tex0 on X (no wrapping). */
		uniform bool Texture0_ClampX;
		/** Clamp Tex0 on Y (no wrapping). */
		uniform bool Texture0_ClampY;
		/** Mirror Tex0 on X when wrapping. */
		uniform bool Texture0_MirrorX;
		/** Mirror Tex0 on Y when wrapping. */
		uniform bool Texture0_MirrorY;
		/** Tex0 UV scroll speed (pixels per second, x/y). */
		uniform vec2 Texture0_Scroll = vec2(0.0, 0.0);
group_uniforms;

group_uniforms Texture1_Settings;
		/** Texture 1 source image. */
		uniform sampler2D Texture1 : source_color;
		/** Tex1 wrap mask in pixels (x,y). */
		uniform vec2 Texture1_Mask;
		/** Tex1 UV scale (tile rate). */
		uniform vec2 Texture1_Scale;
		/** Tex1 UV offset (pixel-space pan). */
		uniform vec2 Texture1_Offset;
		/** Clamp Tex1 on X (no wrapping). */
		uniform bool Texture1_ClampX;
		/** Clamp Tex1 on Y (no wrapping). */
		uniform bool Texture1_ClampY;
		/** Mirror Tex1 on X when wrapping. */
		uniform bool Texture1_MirrorX;
		/** Mirror Tex1 on Y when wrapping. */
		uniform bool Texture1_MirrorY;
		/** Tex1 UV scroll speed (pixels per second, x/y). */
		uniform vec2 Texture1_Scroll = vec2(0.0, 0.0);
group_uniforms;

group_uniforms Cycle0_Combiner_Settings;
	// Cycle 0 color: (A, B, C, D)
	/** Cycle 0 color input A. */
	uniform int cc0_color_a : hint_enum("Combined,Tex0,Tex1,Prim,Shade,Env,1,Noise,0") = 1;
	/** Cycle 0 color input B. */
	uniform int cc0_color_b : hint_enum("Combined,Tex0,Tex1,Prim,Shade,Env,Chroma Key Center,0") = 7;
	/** Cycle 0 color input C. */
	uniform int cc0_color_c : hint_enum("Combined,Tex0,Tex1,Prim,Shade,Env,Chroma Key Scale,Comb Alpha,Tex0 Alpha,Tex1 Alpha,Prim Alpha,Shade Alpha,Env Alpha,LOD Frac,Prim LOD Frac,0") = 4;
	/** Cycle 0 color input D. */
	uniform int cc0_color_d : hint_enum("Combined,Tex0,Tex1,Prim,Shade,Env,1,0") = 7;

	// Cycle 0 alpha: (A, B, C, D)
	/** Cycle 0 alpha input A. */
	uniform int cc0_alpha_a : hint_enum("Comb Alpha,Tex0 Alpha,Tex1 Alpha,Prim Alpha,Shade Alpha,Env Alpha,1,0") = 7;
	/** Cycle 0 alpha input B. */
	uniform int cc0_alpha_b : hint_enum("Comb Alpha,Tex0 Alpha,Tex1 Alpha,Prim Alpha,Shade Alpha,Env Alpha,1,0") = 7;
	/** Cycle 0 alpha input C. */
	uniform int cc0_alpha_c : hint_enum("LOD Frac,Comb Alpha,Tex0 Alpha,Tex1 Alpha,Prim Alpha,Shade Alpha,Env Alpha,Prim LOD Frac,0") = 8;
	/** Cycle 0 alpha input D. */
	uniform int cc0_alpha_d : hint_enum("Comb Alpha,Tex0 Alpha,Tex1 Alpha,Prim Alpha,Shade Alpha,Env Alpha,1,0") = 5;
group_uniforms;

group_uniforms Cycle1_Combiner_Settings;
	// Cycle 1 color: (A, B, C, D)
	/** Cycle 1 color input A. */
	uniform int cc1_color_a : hint_enum("Combined,Tex0,Tex1,Prim,Shade,Env,1,Noise,0") = 1;
	/** Cycle 1 color input B. */
	uniform int cc1_color_b : hint_enum("Combined,Tex0,Tex1,Prim,Shade,Env,Chroma Key Center,0") = 7;
	/** Cycle 1 color input C. */
	uniform int cc1_color_c : hint_enum("Combined,Tex0,Tex1,Prim,Shade,Env,Chroma Key Scale,Comb Alpha,Tex0 Alpha,Tex1 Alpha,Prim Alpha,Shade Alpha,Env Alpha,LOD Frac,Prim LOD Frac,0") = 4;
	/** Cycle 1 color input D. */
	uniform int cc1_color_d : hint_enum("Combined,Tex0,Tex1,Prim,Shade,Env,1,0") = 7;

	// Cycle 1 alpha: (A, B, C, D)
	/** Cycle 1 alpha input A. */
	uniform int cc1_alpha_a : hint_enum("Comb Alpha,Tex0 Alpha,Tex1 Alpha,Prim Alpha,Shade Alpha,Env Alpha,1,0") = 7;
	/** Cycle 1 alpha input B. */
	uniform int cc1_alpha_b : hint_enum("Comb Alpha,Tex0 Alpha,Tex1 Alpha,Prim Alpha,Shade Alpha,Env Alpha,1,0") = 7;
	/** Cycle 1 alpha input C. */
	uniform int cc1_alpha_c : hint_enum("LOD Frac,Comb Alpha,Tex0 Alpha,Tex1 Alpha,Prim Alpha,Shade Alpha,Env Alpha,Prim LOD Frac,0") = 8;
	/** Cycle 1 alpha input D. */
	uniform int cc1_alpha_d : hint_enum("Comb Alpha,Tex0 Alpha,Tex1 Alpha,Prim Alpha,Shade Alpha,Env Alpha,1,0") = 5;
group_uniforms;

group_uniforms Material_Colors;
	/** Primitive color constant (R). Allows values <0 or >1. */
	uniform float material_prim_r = 1.0;
	/** Primitive color constant (G). Allows values <0 or >1. */
	uniform float material_prim_g = 1.0;
	/** Primitive color constant (B). Allows values <0 or >1. */
	uniform float material_prim_b = 1.0;
	/** Primitive color constant (A). Allows values <0 or >1. */
	uniform float material_prim_a = 1.0;

	/** Environment color constant (R). Allows values <0 or >1. */
	uniform float material_env_r = 1.0;
	/** Environment color constant (G). Allows values <0 or >1. */
	uniform float material_env_g = 1.0;
	/** Environment color constant (B). Allows values <0 or >1. */
	uniform float material_env_b = 1.0;
	/** Environment color constant (A). Allows values <0 or >1. */
	uniform float material_env_a = 1.0;
group_uniforms;

group_uniforms Extra_Inputs;
	/** Chroma key center color (RGB). Used as Color B input "Chroma Key Center". */
	uniform vec3 chroma_key_center = vec3(0.0);
	/** Chroma key scale factor (RGB). Used as Color C input "Chroma Key Scale". */
	uniform vec3 chroma_key_scale = vec3(0.0);
	/** Primitive LOD fraction (0–1). Used as Color C / Alpha C input "Prim LOD Frac".
	  * Set manually to control mip blend without relying on screen-space derivatives. */
	uniform float prim_lod_frac : hint_range(0.0, 1.0) = 0.0;
group_uniforms;

group_uniforms Alpha_Settings;
	/** Alpha cutout threshold (discard below). */
	uniform float alpha_clip : hint_range(0.0, 1.0) = 0.0;
group_uniforms;

group_uniforms Atlas_Settings;
	/** Size of Tex0 sub-region in the atlas (pixels). 0 = use full texture. */
	uniform ivec2 atlas_region_0 = ivec2(0, 0);
	/** Top-left corner of Tex0 sub-region in the atlas (pixels). */
	uniform ivec2 atlas_offset_0 = ivec2(0, 0);
	/** Size of Tex1 sub-region in the atlas (pixels). 0 = use full texture. */
	uniform ivec2 atlas_region_1 = ivec2(0, 0);
	/** Top-left corner of Tex1 sub-region in the atlas (pixels). */
	uniform ivec2 atlas_offset_1 = ivec2(0, 0);
	/** Texels to inset from region edges to prevent atlas bleeding. 0 = no inset. */
	uniform int atlas_seam_hiding = 0;
	/** Fractional UV inset per tile (like SEEM_HIDING). Slightly zooms into each
	  * tile to avoid sampling at the very edge. Typical value: 0.007 (1/128). */
	uniform float atlas_seam_zoom : hint_range(0.0, 0.1) = 0.0;
group_uniforms;

// Geometry mode bits
const int G_TEX_GEN      = (1 << 14);

// Other mode H bits (subset)
const int G_MDSFT_CYCLETYPE = 20;
const int G_CYC_2CYCLE      = (1 << G_MDSFT_CYCLETYPE);

// Draw flags (subset)
const int DRAW_FLAG_TEX0_MONO = (1 << 1);
const int DRAW_FLAG_TEX1_MONO = (1 << 2);
const int DRAW_FLAG_TEX0_4BIT = (1 << 5);
const int DRAW_FLAG_TEX1_4BIT = (1 << 6);
const int DRAW_FLAG_TEX0_3BIT = (1 << 7);
const int DRAW_FLAG_TEX1_3BIT = (1 << 8);

group_uniforms Mode_Toggles;
	// Geometry
	/** Generate UVs from normals (env/chrome mapping). */
	uniform bool use_tex_gen = false;

	// Other mode H
	/** Texture filtering mode. */
	uniform int filter_mode : hint_enum("Nearest,3-Point,Bilinear") = 1;
	/** Enable 2-cycle combiner. */
	uniform bool use_two_cycle = false;

	// Draw flags
	/** Force Tex0 to grayscale (R channel). */
	uniform bool tex0_mono = false;
	/** Force Tex1 to grayscale (R channel). */
	uniform bool tex1_mono = false;
	/** Quantize Tex0 colors. */
	uniform int tex0_quantize : hint_enum("None,4-bit,3-bit") = 0;
	/** Quantize Tex1 colors. */
	uniform int tex1_quantize : hint_enum("None,4-bit,3-bit") = 0;
group_uniforms;

int build_geo_mode()
{
	return (use_tex_gen ? G_TEX_GEN : 0)
		;
}

int build_other_mode_h()
{
	return (use_two_cycle ? G_CYC_2CYCLE : 0);
}

int build_draw_flags()
{
	int flags = 0;
	flags |= (tex0_mono ? DRAW_FLAG_TEX0_MONO : 0);
	flags |= (tex1_mono ? DRAW_FLAG_TEX1_MONO : 0);
	flags |= (tex0_quantize == 1 ? DRAW_FLAG_TEX0_4BIT : 0);
	flags |= (tex0_quantize == 2 ? DRAW_FLAG_TEX0_3BIT : 0);
	flags |= (tex1_quantize == 1 ? DRAW_FLAG_TEX1_4BIT : 0);
	flags |= (tex1_quantize == 2 ? DRAW_FLAG_TEX1_3BIT : 0);
	return flags;
}

// --------------------------------------------------------------------
// Varyings
// --------------------------------------------------------------------
varying vec4 cc_shade;
varying vec4 uv;       // xy = tex0, zw = tex1 (pixel space)
varying vec4 tileSize; // per-tile size in pixels

struct N64CombVertexData {
	vec4 cc_shade;
	vec4 uv;
	vec4 tileSize;
};

// --------------------------------------------------------------------
// Material vector builders (from UI fields)
// --------------------------------------------------------------------
vec4 build_material_mask()
{
	vec2 sign0 = vec2(Texture0_ClampX ? -1.0 : 1.0, Texture0_ClampY ? -1.0 : 1.0);
	vec2 sign1 = vec2(Texture1_ClampX ? -1.0 : 1.0, Texture1_ClampY ? -1.0 : 1.0);
	return vec4(Texture0_Mask * sign0, Texture1_Mask * sign1);
}

vec4 build_material_shift()
{
	return vec4(Texture0_Scale, Texture1_Scale);
}

vec4 build_material_low()
{
	return vec4(Texture0_Offset, Texture1_Offset);
}

vec4 build_material_high()
{
	vec2 sign0 = vec2(Texture0_MirrorX ? -1.0 : 1.0, Texture0_MirrorY ? -1.0 : 1.0);
	vec2 sign1 = vec2(Texture1_MirrorX ? -1.0 : 1.0, Texture1_MirrorY ? -1.0 : 1.0);
	return vec4(Texture0_Mask * sign0, Texture1_Mask * sign1);
}

vec4 build_material_prim_color()
{
	return vec4(material_prim_r, material_prim_g, material_prim_b, material_prim_a);
}

vec4 build_material_env_color()
{
	return vec4(material_env_r, material_env_g, material_env_b, material_env_a);
}

// --------------------------------------------------------------------
// Utils
// --------------------------------------------------------------------


float noise(in vec2 coords)
{
	return fract(sin(dot(coords, vec2(12.9898, 78.233))) * 43758.5453);
}

vec4 mirrorUV(vec4 uvEnd, vec4 uvIn)
{
	vec4 uvMod2 = mod(uvIn, uvEnd * 2.0 + 1.0);
	return mix(uvMod2, (uvEnd * 2.0) - uvMod2, step(uvEnd, uvMod2));
}

ivec4 wrappedMirror(ivec4 texSize, ivec4 uvIn, vec4 material_mask, vec4 material_high, vec4 tile_size)
{
	vec4 mask = abs(material_mask);

	vec4 isClamp      = step(material_mask, vec4(1.0));
	vec4 isMirror     = step(material_high, vec4(0.0));
	vec4 isForceClamp = step(mask, vec4(1.0));
	mask = mix(mask, vec4(256.0), isForceClamp);

	vec4 tc = vec4(uvIn);
	tc.yw = vec2(texSize.yw) - tc.yw;

	vec4 uvClamp = clamp(tc, vec4(0.0), tile_size);
	tc = mix(tc, uvClamp, isClamp);

	vec4 uvMirror = mirrorUV(mask - vec4(0.5), tc);
	tc = mix(tc, uvMirror, isMirror);

	tc = mod(tc, min(vec4(texSize + 1), mask));
	tc.yw = vec2(texSize.yw) - tc.yw;
	return ivec4(tc);
}

// Merged wrap: builds material_mask and material_high once, returns both
// tex A (xy) and tex B (zw) coords in a single call to avoid redundant
// uniform reads when both textures are sampled in the same filter pass.
ivec4 wrap_texel_ab(ivec2 coord_a, ivec2 size_a, ivec2 coord_b, ivec2 size_b)
{
	vec4 material_mask = build_material_mask();
	vec4 material_high = build_material_high();
	// Use atlas region sizes when set, otherwise full texture sizes.
	ivec2 eff_a = atlas_region_0.x > 0 ? atlas_region_0 : size_a;
	ivec2 eff_b = atlas_region_1.x > 0 ? atlas_region_1 : size_b;
	ivec4 wrapped = wrappedMirror(ivec4(eff_a, eff_b) - 1, ivec4(coord_a, coord_b), material_mask, material_high, tileSize);
	// Clamp to valid region range. With atlas_seam_hiding > 0, inset from edges
	// to prevent bleeding from adjacent atlas tiles.
	wrapped = clamp(wrapped, ivec4(atlas_seam_hiding), ivec4(eff_a - 1 - atlas_seam_hiding, eff_b - 1 - atlas_seam_hiding));
	// Offset into atlas after wrapping.
	return wrapped + ivec4(atlas_offset_0, atlas_offset_1);
}

ivec2 wrap_texel_a(ivec2 coord, ivec2 size)
{
	return wrap_texel_ab(coord, size, ivec2(0), ivec2(1)).xy;
}

ivec2 wrap_texel_b(ivec2 coord, ivec2 size)
{
	return wrap_texel_ab(ivec2(0), ivec2(1), coord, size).zw;
}

// Texture filter include (build 3 variants per texture).
#define TF_UV_IS_PIXEL

#define TF_SAMPLE_NAME sample_texA_nearest
#define TF_WRAP_TEXEL(coord, size) wrap_texel_a(coord, size)
#define FILTER_NONE
#ifndef TEXTUREFILTER_UTILS_INCLUDED
#define TEXTUREFILTER_UTILS_INCLUDED

#ifndef TF_GET_TEX_SIZE
#define TF_GET_TEX_SIZE(tex) textureSize(tex, 0)
#endif

#ifndef TF_WRAP_TEXEL
ivec2 tf_wrap_texel(ivec2 coord, ivec2 size) {
    return ivec2(
        (coord.x % size.x + size.x) % size.x,
        (coord.y % size.y + size.y) % size.y
    );
}
#define TF_WRAP_TEXEL(coord, size) tf_wrap_texel(coord, size)
#endif

#endif // TEXTUREFILTER_UTILS_INCLUDED

#ifndef TF_SAMPLE_NAME
#define TF_SAMPLE_NAME sample_filter
#endif

#ifdef TF_PIXEL_COORD
#undef TF_PIXEL_COORD
#endif
#ifdef TF_UV_IS_PIXEL
#define TF_PIXEL_COORD(uv, size) ((uv) - 0.5)
#else
#define TF_PIXEL_COORD(uv, size) ((uv) * vec2(size) - 0.5)
#endif

#ifdef FILTER_NONE
vec4 TF_SAMPLE_NAME(sampler2D tex, vec2 uv_in) {
    ivec2 texture_size = TF_GET_TEX_SIZE(tex);
    vec2 pixel_coord_float = TF_PIXEL_COORD(uv_in, texture_size);
    ivec2 texel_coord = ivec2(floor(pixel_coord_float + 0.5));
    return texelFetch(tex, TF_WRAP_TEXEL(texel_coord, texture_size), 0);
}
#endif

#ifdef FILTER_3POINT
vec4 TF_SAMPLE_NAME(sampler2D tex, vec2 uv_in) {
    ivec2 texture_size = TF_GET_TEX_SIZE(tex);
    vec2 pixel_coord_float = TF_PIXEL_COORD(uv_in, texture_size);

    ivec2 texel_coord = ivec2(floor(pixel_coord_float));
    vec2 frag_coord = fract(pixel_coord_float);

    vec4 t0 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord, texture_size), 0);
    vec4 t1 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 0), texture_size), 0);
    vec4 t2 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(0, 1), texture_size), 0);
    vec4 t3 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 1), texture_size), 0);

    if (frag_coord.x + frag_coord.y < 1.0) {
        return t0 + (t1 - t0) * frag_coord.x + (t2 - t0) * frag_coord.y;
    } else {
        vec2 weights = vec2(1.0 - frag_coord.x, 1.0 - frag_coord.y);
        return t3 + (t2 - t3) * weights.x + (t1 - t3) * weights.y;
    }
}
#endif

#ifdef FILTER_BOX
vec4 TF_SAMPLE_NAME(sampler2D tex, vec2 uv_in) {
    ivec2 texture_size = TF_GET_TEX_SIZE(tex);
    vec2 pixel_coord = TF_PIXEL_COORD(uv_in, texture_size);

    ivec2 texel_coord = ivec2(floor(pixel_coord));
    vec2 f = fract(pixel_coord);

    vec4 t0 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord, texture_size), 0);
    vec4 t1 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 0), texture_size), 0);
    vec4 t2 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(0, 1), texture_size), 0);
    vec4 t3 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 1), texture_size), 0);

    return mix(mix(t0, t1, f.x), mix(t2, t3, f.x), f.y);
}
#endif
#undef FILTER_NONE
#undef TF_WRAP_TEXEL
#undef TF_SAMPLE_NAME

#define TF_SAMPLE_NAME sample_texA_3point
#define TF_WRAP_TEXEL(coord, size) wrap_texel_a(coord, size)
#define FILTER_3POINT
#ifndef TEXTUREFILTER_UTILS_INCLUDED
#define TEXTUREFILTER_UTILS_INCLUDED

#ifndef TF_GET_TEX_SIZE
#define TF_GET_TEX_SIZE(tex) textureSize(tex, 0)
#endif

#ifndef TF_WRAP_TEXEL
ivec2 tf_wrap_texel(ivec2 coord, ivec2 size) {
    return ivec2(
        (coord.x % size.x + size.x) % size.x,
        (coord.y % size.y + size.y) % size.y
    );
}
#define TF_WRAP_TEXEL(coord, size) tf_wrap_texel(coord, size)
#endif

#endif // TEXTUREFILTER_UTILS_INCLUDED

#ifndef TF_SAMPLE_NAME
#define TF_SAMPLE_NAME sample_filter
#endif

#ifdef TF_PIXEL_COORD
#undef TF_PIXEL_COORD
#endif
#ifdef TF_UV_IS_PIXEL
#define TF_PIXEL_COORD(uv, size) ((uv) - 0.5)
#else
#define TF_PIXEL_COORD(uv, size) ((uv) * vec2(size) - 0.5)
#endif

#ifdef FILTER_NONE
vec4 TF_SAMPLE_NAME(sampler2D tex, vec2 uv_in) {
    ivec2 texture_size = TF_GET_TEX_SIZE(tex);
    vec2 pixel_coord_float = TF_PIXEL_COORD(uv_in, texture_size);
    ivec2 texel_coord = ivec2(floor(pixel_coord_float + 0.5));
    return texelFetch(tex, TF_WRAP_TEXEL(texel_coord, texture_size), 0);
}
#endif

#ifdef FILTER_3POINT
vec4 TF_SAMPLE_NAME(sampler2D tex, vec2 uv_in) {
    ivec2 texture_size = TF_GET_TEX_SIZE(tex);
    vec2 pixel_coord_float = TF_PIXEL_COORD(uv_in, texture_size);

    ivec2 texel_coord = ivec2(floor(pixel_coord_float));
    vec2 frag_coord = fract(pixel_coord_float);

    vec4 t0 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord, texture_size), 0);
    vec4 t1 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 0), texture_size), 0);
    vec4 t2 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(0, 1), texture_size), 0);
    vec4 t3 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 1), texture_size), 0);

    if (frag_coord.x + frag_coord.y < 1.0) {
        return t0 + (t1 - t0) * frag_coord.x + (t2 - t0) * frag_coord.y;
    } else {
        vec2 weights = vec2(1.0 - frag_coord.x, 1.0 - frag_coord.y);
        return t3 + (t2 - t3) * weights.x + (t1 - t3) * weights.y;
    }
}
#endif

#ifdef FILTER_BOX
vec4 TF_SAMPLE_NAME(sampler2D tex, vec2 uv_in) {
    ivec2 texture_size = TF_GET_TEX_SIZE(tex);
    vec2 pixel_coord = TF_PIXEL_COORD(uv_in, texture_size);

    ivec2 texel_coord = ivec2(floor(pixel_coord));
    vec2 f = fract(pixel_coord);

    vec4 t0 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord, texture_size), 0);
    vec4 t1 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 0), texture_size), 0);
    vec4 t2 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(0, 1), texture_size), 0);
    vec4 t3 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 1), texture_size), 0);

    return mix(mix(t0, t1, f.x), mix(t2, t3, f.x), f.y);
}
#endif
#undef FILTER_3POINT
#undef TF_WRAP_TEXEL
#undef TF_SAMPLE_NAME

#define TF_SAMPLE_NAME sample_texA_bilinear
#define TF_WRAP_TEXEL(coord, size) wrap_texel_a(coord, size)
#define FILTER_BOX
#ifndef TEXTUREFILTER_UTILS_INCLUDED
#define TEXTUREFILTER_UTILS_INCLUDED

#ifndef TF_GET_TEX_SIZE
#define TF_GET_TEX_SIZE(tex) textureSize(tex, 0)
#endif

#ifndef TF_WRAP_TEXEL
ivec2 tf_wrap_texel(ivec2 coord, ivec2 size) {
    return ivec2(
        (coord.x % size.x + size.x) % size.x,
        (coord.y % size.y + size.y) % size.y
    );
}
#define TF_WRAP_TEXEL(coord, size) tf_wrap_texel(coord, size)
#endif

#endif // TEXTUREFILTER_UTILS_INCLUDED

#ifndef TF_SAMPLE_NAME
#define TF_SAMPLE_NAME sample_filter
#endif

#ifdef TF_PIXEL_COORD
#undef TF_PIXEL_COORD
#endif
#ifdef TF_UV_IS_PIXEL
#define TF_PIXEL_COORD(uv, size) ((uv) - 0.5)
#else
#define TF_PIXEL_COORD(uv, size) ((uv) * vec2(size) - 0.5)
#endif

#ifdef FILTER_NONE
vec4 TF_SAMPLE_NAME(sampler2D tex, vec2 uv_in) {
    ivec2 texture_size = TF_GET_TEX_SIZE(tex);
    vec2 pixel_coord_float = TF_PIXEL_COORD(uv_in, texture_size);
    ivec2 texel_coord = ivec2(floor(pixel_coord_float + 0.5));
    return texelFetch(tex, TF_WRAP_TEXEL(texel_coord, texture_size), 0);
}
#endif

#ifdef FILTER_3POINT
vec4 TF_SAMPLE_NAME(sampler2D tex, vec2 uv_in) {
    ivec2 texture_size = TF_GET_TEX_SIZE(tex);
    vec2 pixel_coord_float = TF_PIXEL_COORD(uv_in, texture_size);

    ivec2 texel_coord = ivec2(floor(pixel_coord_float));
    vec2 frag_coord = fract(pixel_coord_float);

    vec4 t0 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord, texture_size), 0);
    vec4 t1 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 0), texture_size), 0);
    vec4 t2 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(0, 1), texture_size), 0);
    vec4 t3 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 1), texture_size), 0);

    if (frag_coord.x + frag_coord.y < 1.0) {
        return t0 + (t1 - t0) * frag_coord.x + (t2 - t0) * frag_coord.y;
    } else {
        vec2 weights = vec2(1.0 - frag_coord.x, 1.0 - frag_coord.y);
        return t3 + (t2 - t3) * weights.x + (t1 - t3) * weights.y;
    }
}
#endif

#ifdef FILTER_BOX
vec4 TF_SAMPLE_NAME(sampler2D tex, vec2 uv_in) {
    ivec2 texture_size = TF_GET_TEX_SIZE(tex);
    vec2 pixel_coord = TF_PIXEL_COORD(uv_in, texture_size);

    ivec2 texel_coord = ivec2(floor(pixel_coord));
    vec2 f = fract(pixel_coord);

    vec4 t0 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord, texture_size), 0);
    vec4 t1 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 0), texture_size), 0);
    vec4 t2 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(0, 1), texture_size), 0);
    vec4 t3 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 1), texture_size), 0);

    return mix(mix(t0, t1, f.x), mix(t2, t3, f.x), f.y);
}
#endif
#undef FILTER_BOX
#undef TF_WRAP_TEXEL
#undef TF_SAMPLE_NAME

#define TF_SAMPLE_NAME sample_texB_nearest
#define TF_WRAP_TEXEL(coord, size) wrap_texel_b(coord, size)
#define FILTER_NONE
#ifndef TEXTUREFILTER_UTILS_INCLUDED
#define TEXTUREFILTER_UTILS_INCLUDED

#ifndef TF_GET_TEX_SIZE
#define TF_GET_TEX_SIZE(tex) textureSize(tex, 0)
#endif

#ifndef TF_WRAP_TEXEL
ivec2 tf_wrap_texel(ivec2 coord, ivec2 size) {
    return ivec2(
        (coord.x % size.x + size.x) % size.x,
        (coord.y % size.y + size.y) % size.y
    );
}
#define TF_WRAP_TEXEL(coord, size) tf_wrap_texel(coord, size)
#endif

#endif // TEXTUREFILTER_UTILS_INCLUDED

#ifndef TF_SAMPLE_NAME
#define TF_SAMPLE_NAME sample_filter
#endif

#ifdef TF_PIXEL_COORD
#undef TF_PIXEL_COORD
#endif
#ifdef TF_UV_IS_PIXEL
#define TF_PIXEL_COORD(uv, size) ((uv) - 0.5)
#else
#define TF_PIXEL_COORD(uv, size) ((uv) * vec2(size) - 0.5)
#endif

#ifdef FILTER_NONE
vec4 TF_SAMPLE_NAME(sampler2D tex, vec2 uv_in) {
    ivec2 texture_size = TF_GET_TEX_SIZE(tex);
    vec2 pixel_coord_float = TF_PIXEL_COORD(uv_in, texture_size);
    ivec2 texel_coord = ivec2(floor(pixel_coord_float + 0.5));
    return texelFetch(tex, TF_WRAP_TEXEL(texel_coord, texture_size), 0);
}
#endif

#ifdef FILTER_3POINT
vec4 TF_SAMPLE_NAME(sampler2D tex, vec2 uv_in) {
    ivec2 texture_size = TF_GET_TEX_SIZE(tex);
    vec2 pixel_coord_float = TF_PIXEL_COORD(uv_in, texture_size);

    ivec2 texel_coord = ivec2(floor(pixel_coord_float));
    vec2 frag_coord = fract(pixel_coord_float);

    vec4 t0 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord, texture_size), 0);
    vec4 t1 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 0), texture_size), 0);
    vec4 t2 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(0, 1), texture_size), 0);
    vec4 t3 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 1), texture_size), 0);

    if (frag_coord.x + frag_coord.y < 1.0) {
        return t0 + (t1 - t0) * frag_coord.x + (t2 - t0) * frag_coord.y;
    } else {
        vec2 weights = vec2(1.0 - frag_coord.x, 1.0 - frag_coord.y);
        return t3 + (t2 - t3) * weights.x + (t1 - t3) * weights.y;
    }
}
#endif

#ifdef FILTER_BOX
vec4 TF_SAMPLE_NAME(sampler2D tex, vec2 uv_in) {
    ivec2 texture_size = TF_GET_TEX_SIZE(tex);
    vec2 pixel_coord = TF_PIXEL_COORD(uv_in, texture_size);

    ivec2 texel_coord = ivec2(floor(pixel_coord));
    vec2 f = fract(pixel_coord);

    vec4 t0 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord, texture_size), 0);
    vec4 t1 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 0), texture_size), 0);
    vec4 t2 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(0, 1), texture_size), 0);
    vec4 t3 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 1), texture_size), 0);

    return mix(mix(t0, t1, f.x), mix(t2, t3, f.x), f.y);
}
#endif
#undef FILTER_NONE
#undef TF_WRAP_TEXEL
#undef TF_SAMPLE_NAME

#define TF_SAMPLE_NAME sample_texB_3point
#define TF_WRAP_TEXEL(coord, size) wrap_texel_b(coord, size)
#define FILTER_3POINT
#ifndef TEXTUREFILTER_UTILS_INCLUDED
#define TEXTUREFILTER_UTILS_INCLUDED

#ifndef TF_GET_TEX_SIZE
#define TF_GET_TEX_SIZE(tex) textureSize(tex, 0)
#endif

#ifndef TF_WRAP_TEXEL
ivec2 tf_wrap_texel(ivec2 coord, ivec2 size) {
    return ivec2(
        (coord.x % size.x + size.x) % size.x,
        (coord.y % size.y + size.y) % size.y
    );
}
#define TF_WRAP_TEXEL(coord, size) tf_wrap_texel(coord, size)
#endif

#endif // TEXTUREFILTER_UTILS_INCLUDED

#ifndef TF_SAMPLE_NAME
#define TF_SAMPLE_NAME sample_filter
#endif

#ifdef TF_PIXEL_COORD
#undef TF_PIXEL_COORD
#endif
#ifdef TF_UV_IS_PIXEL
#define TF_PIXEL_COORD(uv, size) ((uv) - 0.5)
#else
#define TF_PIXEL_COORD(uv, size) ((uv) * vec2(size) - 0.5)
#endif

#ifdef FILTER_NONE
vec4 TF_SAMPLE_NAME(sampler2D tex, vec2 uv_in) {
    ivec2 texture_size = TF_GET_TEX_SIZE(tex);
    vec2 pixel_coord_float = TF_PIXEL_COORD(uv_in, texture_size);
    ivec2 texel_coord = ivec2(floor(pixel_coord_float + 0.5));
    return texelFetch(tex, TF_WRAP_TEXEL(texel_coord, texture_size), 0);
}
#endif

#ifdef FILTER_3POINT
vec4 TF_SAMPLE_NAME(sampler2D tex, vec2 uv_in) {
    ivec2 texture_size = TF_GET_TEX_SIZE(tex);
    vec2 pixel_coord_float = TF_PIXEL_COORD(uv_in, texture_size);

    ivec2 texel_coord = ivec2(floor(pixel_coord_float));
    vec2 frag_coord = fract(pixel_coord_float);

    vec4 t0 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord, texture_size), 0);
    vec4 t1 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 0), texture_size), 0);
    vec4 t2 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(0, 1), texture_size), 0);
    vec4 t3 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 1), texture_size), 0);

    if (frag_coord.x + frag_coord.y < 1.0) {
        return t0 + (t1 - t0) * frag_coord.x + (t2 - t0) * frag_coord.y;
    } else {
        vec2 weights = vec2(1.0 - frag_coord.x, 1.0 - frag_coord.y);
        return t3 + (t2 - t3) * weights.x + (t1 - t3) * weights.y;
    }
}
#endif

#ifdef FILTER_BOX
vec4 TF_SAMPLE_NAME(sampler2D tex, vec2 uv_in) {
    ivec2 texture_size = TF_GET_TEX_SIZE(tex);
    vec2 pixel_coord = TF_PIXEL_COORD(uv_in, texture_size);

    ivec2 texel_coord = ivec2(floor(pixel_coord));
    vec2 f = fract(pixel_coord);

    vec4 t0 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord, texture_size), 0);
    vec4 t1 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 0), texture_size), 0);
    vec4 t2 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(0, 1), texture_size), 0);
    vec4 t3 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 1), texture_size), 0);

    return mix(mix(t0, t1, f.x), mix(t2, t3, f.x), f.y);
}
#endif
#undef FILTER_3POINT
#undef TF_WRAP_TEXEL
#undef TF_SAMPLE_NAME

#define TF_SAMPLE_NAME sample_texB_bilinear
#define TF_WRAP_TEXEL(coord, size) wrap_texel_b(coord, size)
#define FILTER_BOX
#ifndef TEXTUREFILTER_UTILS_INCLUDED
#define TEXTUREFILTER_UTILS_INCLUDED

#ifndef TF_GET_TEX_SIZE
#define TF_GET_TEX_SIZE(tex) textureSize(tex, 0)
#endif

#ifndef TF_WRAP_TEXEL
ivec2 tf_wrap_texel(ivec2 coord, ivec2 size) {
    return ivec2(
        (coord.x % size.x + size.x) % size.x,
        (coord.y % size.y + size.y) % size.y
    );
}
#define TF_WRAP_TEXEL(coord, size) tf_wrap_texel(coord, size)
#endif

#endif // TEXTUREFILTER_UTILS_INCLUDED

#ifndef TF_SAMPLE_NAME
#define TF_SAMPLE_NAME sample_filter
#endif

#ifdef TF_PIXEL_COORD
#undef TF_PIXEL_COORD
#endif
#ifdef TF_UV_IS_PIXEL
#define TF_PIXEL_COORD(uv, size) ((uv) - 0.5)
#else
#define TF_PIXEL_COORD(uv, size) ((uv) * vec2(size) - 0.5)
#endif

#ifdef FILTER_NONE
vec4 TF_SAMPLE_NAME(sampler2D tex, vec2 uv_in) {
    ivec2 texture_size = TF_GET_TEX_SIZE(tex);
    vec2 pixel_coord_float = TF_PIXEL_COORD(uv_in, texture_size);
    ivec2 texel_coord = ivec2(floor(pixel_coord_float + 0.5));
    return texelFetch(tex, TF_WRAP_TEXEL(texel_coord, texture_size), 0);
}
#endif

#ifdef FILTER_3POINT
vec4 TF_SAMPLE_NAME(sampler2D tex, vec2 uv_in) {
    ivec2 texture_size = TF_GET_TEX_SIZE(tex);
    vec2 pixel_coord_float = TF_PIXEL_COORD(uv_in, texture_size);

    ivec2 texel_coord = ivec2(floor(pixel_coord_float));
    vec2 frag_coord = fract(pixel_coord_float);

    vec4 t0 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord, texture_size), 0);
    vec4 t1 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 0), texture_size), 0);
    vec4 t2 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(0, 1), texture_size), 0);
    vec4 t3 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 1), texture_size), 0);

    if (frag_coord.x + frag_coord.y < 1.0) {
        return t0 + (t1 - t0) * frag_coord.x + (t2 - t0) * frag_coord.y;
    } else {
        vec2 weights = vec2(1.0 - frag_coord.x, 1.0 - frag_coord.y);
        return t3 + (t2 - t3) * weights.x + (t1 - t3) * weights.y;
    }
}
#endif

#ifdef FILTER_BOX
vec4 TF_SAMPLE_NAME(sampler2D tex, vec2 uv_in) {
    ivec2 texture_size = TF_GET_TEX_SIZE(tex);
    vec2 pixel_coord = TF_PIXEL_COORD(uv_in, texture_size);

    ivec2 texel_coord = ivec2(floor(pixel_coord));
    vec2 f = fract(pixel_coord);

    vec4 t0 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord, texture_size), 0);
    vec4 t1 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 0), texture_size), 0);
    vec4 t2 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(0, 1), texture_size), 0);
    vec4 t3 = texelFetch(tex, TF_WRAP_TEXEL(texel_coord + ivec2(1, 1), texture_size), 0);

    return mix(mix(t0, t1, f.x), mix(t2, t3, f.x), f.y);
}
#endif
#undef FILTER_BOX
#undef TF_WRAP_TEXEL
#undef TF_SAMPLE_NAME

#undef TF_UV_IS_PIXEL

vec4 quantize3Bit(in vec4 color) { return vec4(round(color.rgb * 8.0) / 8.0, step(0.5, color.a)); }
vec4 quantize4Bit(in vec4 color) { return round(color * 16.0) / 16.0; }

vec4 quantizeTexture0(vec4 color, int draw_flags)
{
	vec4 colorQuant = ((draw_flags & DRAW_FLAG_TEX0_4BIT) != 0) ? quantize4Bit(color) : color;
	return ((draw_flags & DRAW_FLAG_TEX0_3BIT) != 0) ? quantize3Bit(colorQuant) : colorQuant;
}

vec4 quantizeTexture1(vec4 color, int draw_flags)
{
	vec4 colorQuant = ((draw_flags & DRAW_FLAG_TEX1_4BIT) != 0) ? quantize4Bit(color) : color;
	return ((draw_flags & DRAW_FLAG_TEX1_3BIT) != 0) ? quantize3Bit(colorQuant) : colorQuant;
}

vec3 cc_fetchColor(
	in int val,
	in vec4 shade,
	in vec4 comb,
	in vec4 texData0,
	in vec4 texData1,
	in vec4 prim,
	in vec4 env,
	in vec2 screen_uv,
	in float lod_frac,
	in float prim_lod_frac_val,
	in vec3 chroma_center,
	in vec3 chroma_scale
)
{
	     if(val == CC_C_COMB            ) return comb.rgb;
	else if(val == CC_C_TEX0            ) return texData0.rgb;
	else if(val == CC_C_TEX1            ) return texData1.rgb;
	else if(val == CC_C_PRIM            ) return prim.rgb;
	else if(val == CC_C_SHADE           ) return shade.rgb;
	else if(val == CC_C_ENV             ) return env.rgb;
	else if(val == CC_C_COMB_ALPHA      ) return comb.aaa;
	else if(val == CC_C_TEX0_ALPHA      ) return texData0.aaa;
	else if(val == CC_C_TEX1_ALPHA      ) return texData1.aaa;
	else if(val == CC_C_PRIM_ALPHA      ) return prim.aaa;
	else if(val == CC_C_SHADE_ALPHA     ) return shade.aaa;
	else if(val == CC_C_ENV_ALPHA       ) return env.aaa;
	else if(val == CC_C_LOD_FRAC        ) return vec3(lod_frac);
	else if(val == CC_C_PRIM_LOD_FRAC   ) return vec3(prim_lod_frac_val);
	else if(val == CC_C_NOISE           ) return vec3(noise((screen_uv * 2.0 - 1.0) * 0.25));
	else if(val == CC_C_CHROMA_KEY_CENTER) return chroma_center;
	else if(val == CC_C_CHROMA_KEY_SCALE ) return chroma_scale;
	else if(val == CC_C_1               ) return vec3(1.0);
	return vec3(0.0);
}

float cc_fetchAlpha(
	in int val,
	in vec4 shade,
	in vec4 comb,
	in vec4 texData0,
	in vec4 texData1,
	in vec4 prim,
	in vec4 env,
	in float lod_frac,
	in float prim_lod_frac_val
)
{
	     if(val == CC_A_COMB         ) return comb.a;
	else if(val == CC_A_TEX0         ) return texData0.a;
	else if(val == CC_A_TEX1         ) return texData1.a;
	else if(val == CC_A_PRIM         ) return prim.a;
	else if(val == CC_A_SHADE        ) return shade.a;
	else if(val == CC_A_ENV          ) return env.a;
	else if(val == CC_A_LOD_FRAC     ) return lod_frac;
	else if(val == CC_A_PRIM_LOD_FRAC) return prim_lod_frac_val;
	else if(val == CC_A_1            ) return 1.0;
	return 0.0;
}

vec4 cc_overflowValue(in vec4 value) { return mod(value + 0.5, 2.0) - 0.5; }
vec4 cc_clampValue(in vec4 value) { return clamp(value, 0.0, 1.0); }

N64CombVertexData n64comb_vertex_data(vec3 normal_in, vec4 color_in, vec2 uv_in, mat4 view_matrix, mat3 model_normal_matrix) {
	N64CombVertexData outv;
	vec4 material_shift = build_material_shift();
	vec4 material_low = build_material_low();
	vec4 material_high = build_material_high();

	int geo_mode = build_geo_mode();
	bool use_tex = (geo_mode & G_TEX_GEN) != 0;

	vec3 normScreen = normalize(mat3(view_matrix) * (model_normal_matrix * normal_in));

	// Pass through vertex color as shade
	outv.cc_shade = color_in;

	// UV generation: use mesh UVs, or generate from normals (env mapping)
	vec2 uvGen = use_tex ? (normScreen.xy * 0.5 + 0.5) : uv_in;

	// Use atlas region sizes when set, otherwise full texture sizes.
	ivec2 texSizeA = atlas_region_0.x > 0 ? atlas_region_0 : max(textureSize(Texture0, 0), ivec2(1));
	ivec2 texSizeB = atlas_region_1.x > 0 ? atlas_region_1 : max(textureSize(Texture1, 0), ivec2(1));
	vec4 texSize = vec4(vec2(texSizeA), vec2(texSizeB));

	vec4 uv_local = uvGen.xyxy * texSize.xyxy;

	uv_local.yw = texSize.yw - uv_local.yw - 1.0;
	uv_local *= material_shift;
	uv_local.yw = texSize.yw - uv_local.yw - 1.0;

	uv_local = uv_local - (material_shift * 0.5) - material_low;

	outv.uv = uv_local;
	outv.tileSize = abs(material_high) - abs(material_low);
	return outv;
}

vec4 n64comb_fragment(vec2 screen_uv) {
	int other_mode_h = build_other_mode_h();
	int draw_flags = build_draw_flags();

	// Build prim/env once per fragment instead of inside every cc_fetch call.
	vec4 primColor = build_material_prim_color();
	vec4 envColor  = build_material_env_color();

	vec4 cc0[4];
	vec4 cc1[4];
	vec4 ccValue = vec4(0.0);

	vec4 ccShade = cc_shade;

	vec4 texData0;
	vec4 texData1;

	// Atlas seam zoom: per-tile UV inset to avoid sampling exact edges.
	// Applied in fragment (not vertex) because mod breaks varying interpolation.
	vec4 uv_zoomed = uv;
	if (atlas_seam_zoom > 0.0) {
		float sz = atlas_seam_zoom;
		ivec2 rA = atlas_region_0.x > 0 ? atlas_region_0 : max(textureSize(Texture0, 0), ivec2(1));
		ivec2 rB = atlas_region_1.x > 0 ? atlas_region_1 : max(textureSize(Texture1, 0), ivec2(1));
		vec4 region = vec4(vec2(rA), vec2(rB));
		uv_zoomed = mod(uv, region) * (1.0 - sz * 2.0) + region * sz;
	}

	// Apply per-texture scroll (pixels per second, driven by TIME).
	uv_zoomed.xy += Texture0_Scroll * TIME;
	uv_zoomed.zw += Texture1_Scroll * TIME;

	if (filter_mode == 0) {
		texData0 = sample_texA_nearest(Texture0, uv_zoomed.xy);
		texData1 = sample_texB_nearest(Texture1, uv_zoomed.zw);
	} else if (filter_mode == 1) {
		texData0 = sample_texA_3point(Texture0, uv_zoomed.xy);
		texData1 = sample_texB_3point(Texture1, uv_zoomed.zw);
	} else {
		texData0 = sample_texA_bilinear(Texture0, uv_zoomed.xy);
		texData1 = sample_texB_bilinear(Texture1, uv_zoomed.zw);
	}

	texData0 = quantizeTexture0(texData0, draw_flags);
	texData1 = quantizeTexture1(texData1, draw_flags);


	if((draw_flags & DRAW_FLAG_TEX0_MONO) != 0) texData0 = texData0.rrrr;
	if((draw_flags & DRAW_FLAG_TEX1_MONO) != 0) texData1 = texData1.rrrr;

	// LOD fraction: approximate the RDP's per-pixel mip level as a 0-1 scalar
	// using screen-space derivatives of Tex0 UVs. fwidth gives the footprint
	// size in texels; log2 maps that to a mip level which we then clamp to [0,1].
	float lod_frac = clamp(log2(max(length(dFdx(uv.xy)), length(dFdy(uv.xy)))) / 8.0, 0.0, 1.0);

	ivec4 cc0Color = ivec4(
		cc_color_a_from_ui(cc0_color_a),
		cc_color_b_from_ui(cc0_color_b),
		cc_color_c_from_ui(cc0_color_c),
		cc_color_d_from_ui(cc0_color_d)
	);
	ivec4 cc0Alpha = ivec4(
		cc_alpha_abd_from_ui(cc0_alpha_a),
		cc_alpha_abd_from_ui(cc0_alpha_b),
		cc_alpha_c_from_ui(cc0_alpha_c),
		cc_alpha_abd_from_ui(cc0_alpha_d)
	);

	ivec4 cc1Color = ivec4(
		cc_color_a_from_ui(cc1_color_a),
		cc_color_b_from_ui(cc1_color_b),
		cc_color_c_from_ui(cc1_color_c),
		cc_color_d_from_ui(cc1_color_d)
	);
	ivec4 cc1Alpha = ivec4(
		cc_alpha_abd_from_ui(cc1_alpha_a),
		cc_alpha_abd_from_ui(cc1_alpha_b),
		cc_alpha_c_from_ui(cc1_alpha_c),
		cc_alpha_abd_from_ui(cc1_alpha_d)
	);

	cc0[0].rgb = cc_fetchColor(cc0Color.x, ccShade, ccValue, texData0, texData1, primColor, envColor, screen_uv, lod_frac, prim_lod_frac, chroma_key_center, chroma_key_scale);
	cc0[1].rgb = cc_fetchColor(cc0Color.y, ccShade, ccValue, texData0, texData1, primColor, envColor, screen_uv, lod_frac, prim_lod_frac, chroma_key_center, chroma_key_scale);
	cc0[2].rgb = cc_fetchColor(cc0Color.z, ccShade, ccValue, texData0, texData1, primColor, envColor, screen_uv, lod_frac, prim_lod_frac, chroma_key_center, chroma_key_scale);
	cc0[3].rgb = cc_fetchColor(cc0Color.w, ccShade, ccValue, texData0, texData1, primColor, envColor, screen_uv, lod_frac, prim_lod_frac, chroma_key_center, chroma_key_scale);

	cc0[0].a = cc_fetchAlpha(cc0Alpha.x, ccShade, ccValue, texData0, texData1, primColor, envColor, lod_frac, prim_lod_frac);
	cc0[1].a = cc_fetchAlpha(cc0Alpha.y, ccShade, ccValue, texData0, texData1, primColor, envColor, lod_frac, prim_lod_frac);
	cc0[2].a = cc_fetchAlpha(cc0Alpha.z, ccShade, ccValue, texData0, texData1, primColor, envColor, lod_frac, prim_lod_frac);
	cc0[3].a = cc_fetchAlpha(cc0Alpha.w, ccShade, ccValue, texData0, texData1, primColor, envColor, lod_frac, prim_lod_frac);

	ccValue = cc_overflowValue((cc0[0] - cc0[1]) * cc0[2] + cc0[3]);

	if((other_mode_h & G_CYC_2CYCLE) != 0) {
		cc1[0].rgb = cc_fetchColor(cc1Color.x, ccShade, ccValue, texData0, texData1, primColor, envColor, screen_uv, lod_frac, prim_lod_frac, chroma_key_center, chroma_key_scale);
		cc1[1].rgb = cc_fetchColor(cc1Color.y, ccShade, ccValue, texData0, texData1, primColor, envColor, screen_uv, lod_frac, prim_lod_frac, chroma_key_center, chroma_key_scale);
		cc1[2].rgb = cc_fetchColor(cc1Color.z, ccShade, ccValue, texData0, texData1, primColor, envColor, screen_uv, lod_frac, prim_lod_frac, chroma_key_center, chroma_key_scale);
		cc1[3].rgb = cc_fetchColor(cc1Color.w, ccShade, ccValue, texData0, texData1, primColor, envColor, screen_uv, lod_frac, prim_lod_frac, chroma_key_center, chroma_key_scale);

		cc1[0].a = cc_fetchAlpha(cc1Alpha.x, ccShade, ccValue, texData0, texData1, primColor, envColor, lod_frac, prim_lod_frac);
		cc1[1].a = cc_fetchAlpha(cc1Alpha.y, ccShade, ccValue, texData0, texData1, primColor, envColor, lod_frac, prim_lod_frac);
		cc1[2].a = cc_fetchAlpha(cc1Alpha.z, ccShade, ccValue, texData0, texData1, primColor, envColor, lod_frac, prim_lod_frac);
		cc1[3].a = cc_fetchAlpha(cc1Alpha.w, ccShade, ccValue, texData0, texData1, primColor, envColor, lod_frac, prim_lod_frac);

		ccValue = (cc1[0] - cc1[1]) * cc1[2] + cc1[3];
	}

	ccValue = cc_clampValue(cc_overflowValue(ccValue));


	if (ccValue.a < alpha_clip) {
		discard;
	}

	return ccValue;
}
Live Preview
Tags
blurry, filtering, N64, Nintendo, retro, shaderinclude
The shader code and all code snippets in this post are under MIT license and can be used freely. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.

More from Purpbatboi2i

Related shaders

guest

0 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
