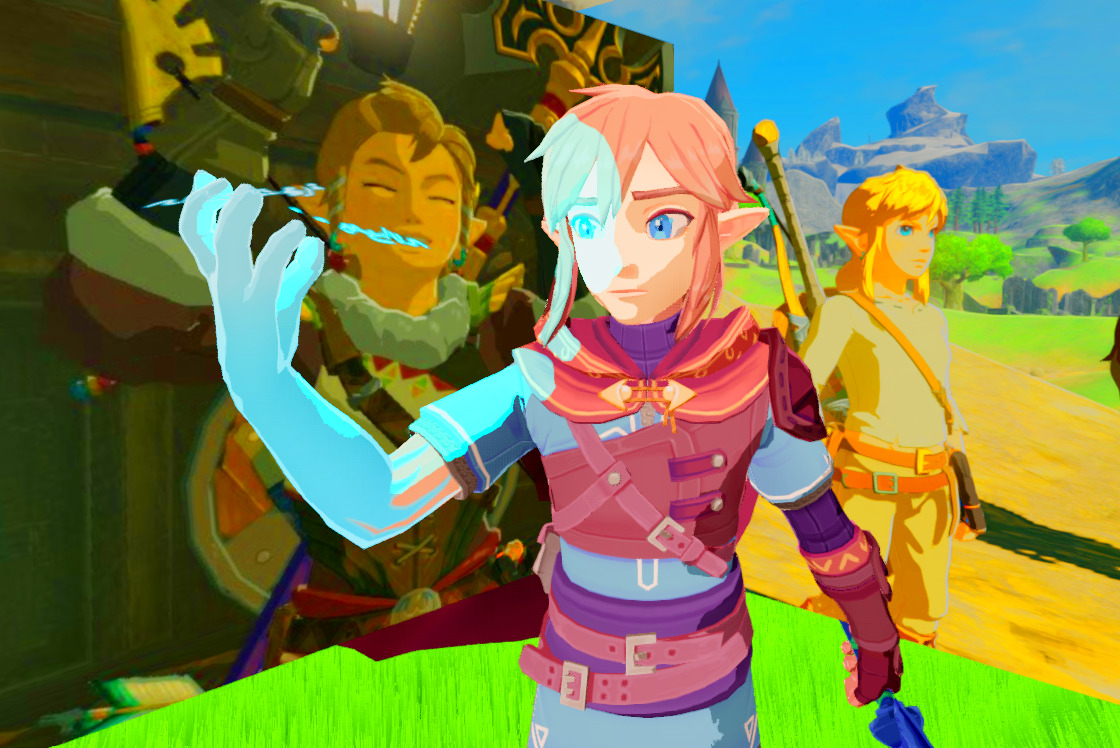

TRUE BoTW Toon Shader!

Currently Godot Shaders doesn’t allow editing pages!!!

It does support editing! Thanks to the Admin for helping me!

Github: Godot_BoTW_Toon_Shader (github.com)

New Features:

  • Animated Shadow Warble
  • Coloured Light Support
  • Multiple Light Sources
  • Normal Bias
  • View Space shadow bias and multiplier
  • Make shadow intensity darker (use carefully)
  • SSAO and other WorldEnvironment effects will now work
  • NO MORE NEED TO SPECIFY LIGHT DIRECTION IN UNIFORM!!!

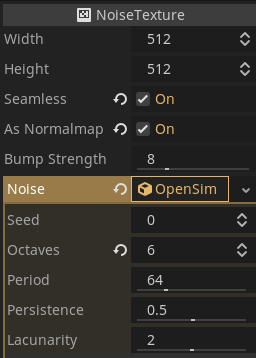

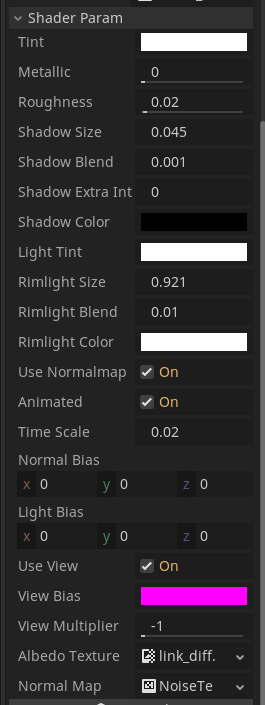

Check Screenshots for my settings

Major update to the BoTW shader posted earlier. (Thanks so much for the support y’all!)



Shader code
// BoTW Toon Shader by NekotoArts
// wrote this at 2AM
//
//
//
// England is my city
// Smoke trees
// Two to the One from the One to the Three
shader_type spatial;
render_mode diffuse_toon, specular_toon;

uniform vec4 tint : hint_color;
uniform sampler2D albedo_texture : hint_albedo;
uniform float metallic : hint_range(0.0, 1.0) = 0.0;
uniform sampler2D normal_map : hint_albedo;
uniform float shadow_size = 0.045;
uniform float shadow_blend = 0.001;
uniform float shadow_extra_intensity = 0.0;
uniform vec4 shadow_color : hint_color;
uniform vec4 light_tint : hint_color;
uniform float rimlight_size = 0.921;
uniform float rimlight_blend = 0.01;
uniform vec4 rimlight_color : hint_color;
uniform bool use_normalmap = true;
uniform bool animated = true;
uniform float time_scale = 0.02;
uniform vec3 normal_bias = vec3(0.0);
uniform vec3 light_bias = vec3(0.0);
uniform bool use_view = true;
uniform vec4 view_bias : hint_color = vec4(1.0, 0.0, 1.0, 1.0);
uniform float view_multiplier : hint_range(-1.0, 1.0) = -1.0;

float fresnel(float amount, vec3 normal, vec3 view)
{
	return pow((1.0 - clamp(dot(normalize(normal), normalize(view)), 0.0, 1.0 )), amount);
}

varying vec3 vertex_normal;
varying vec3 vertex_tangent;

void vertex(){
	vertex_normal = NORMAL;
	vertex_normal = TANGENT;
}

void fragment(){
	ALBEDO = texture(albedo_texture, UV).rgb * tint.rgb;
	METALLIC = metallic;
}

void light(){
	vec3 normal;
	if (use_normalmap){
		vec3 normal_from_texture;
		if (animated){
			normal_from_texture = texture(normal_map, UV + TIME * time_scale).rgb;
		}else{
			normal_from_texture = texture(normal_map, UV).rgb;
		}
		normal = vec3(normal_from_texture.x * NORMAL.x,
		normal_from_texture.y * NORMAL.y, normal_from_texture.z);

		normal = NORMAL - normal_from_texture;
	}else{
		normal = NORMAL;
	}

	if (use_view){
		normal -= VIEW * view_bias.rgb * view_multiplier;
	}

	float NdotL = dot(normal + normal_bias, LIGHT + light_bias);

	float rounded = smoothstep(shadow_size, shadow_blend + shadow_size, NdotL);
	float one_minus = 1.0 - rounded;
	vec3 mult1 = LIGHT_COLOR * rounded * light_tint.rgb * ATTENUATION;
	vec3 mult2 = (one_minus * 1.4 * shadow_color.rgb) - shadow_extra_intensity;
	vec3 add1 = mult1 + mult2;

	float add3  = rimlight_blend + rimlight_size;
	float basic_fresnel = fresnel(1.0, NORMAL, VIEW);
	float smoothed = smoothstep(rimlight_size, add3, basic_fresnel);

	vec3 add2 = add1 + smoothed * rimlight_color.rgb;
	DIFFUSE_LIGHT += ALBEDO * add2;
}
Tags
botw, cel, genshin, genshin impact, toon
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
