VHS Post Processing

VHS shader for analog horror games.

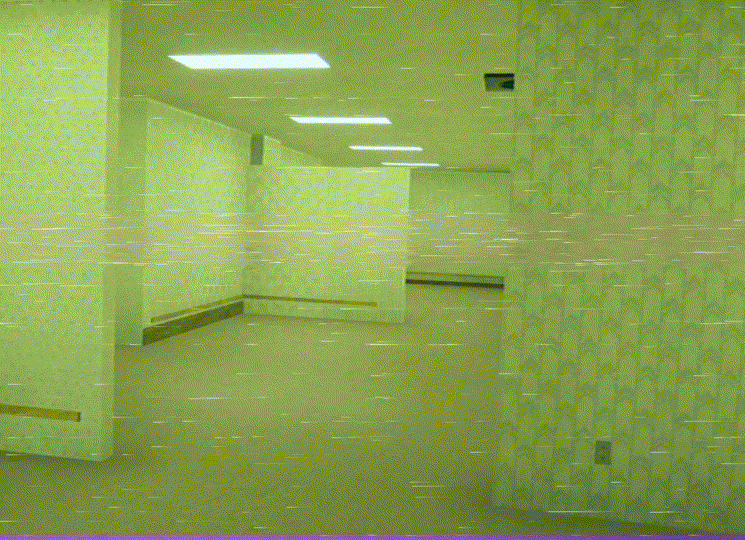

It contains plenty of options to control the scanlines, vignette, and image distortions.

Developed for the indie analog horror game Room2Room.

Instructions

  1. Create a CanvasLayer
  2. Add a ColorRect and sets its anchors to Full Rect
  3. Add a ShaderMaterial and the shader to the ColorRect
  4. Add an RGBA noise texture such as this one



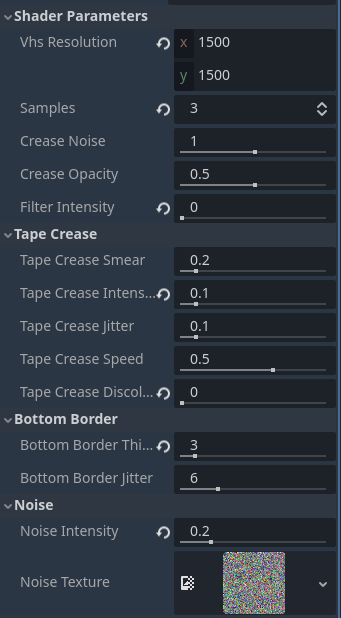

Shader code
// https://www.shadertoy.com/view/MdffD7
// Fork of FMS_Cat's VCR distortion shader

shader_type canvas_item;

// TODO: Add uniforms for tape crease discoloration and image jiggle

uniform sampler2D screen_texture: hint_screen_texture, filter_linear_mipmap, repeat_disable;

uniform vec2 vhs_resolution = vec2(320.0, 240.0);

uniform int samples = 2;
uniform float crease_noise: hint_range(0.0, 2.0, 0.1) = 1.0;
uniform float crease_opacity: hint_range(0.0, 1.0, 0.1) = 0.5;
uniform float filter_intensity: hint_range(0.0, 1.0, 0.1) = 0.1;

group_uniforms tape_crease;
uniform float tape_crease_smear: hint_range(0.0, 2.0, 0.1) = 0.2;
uniform float tape_crease_intensity: hint_range(0.0, 1.0, 0.1) = 0.2;
uniform float tape_crease_jitter: hint_range(0.0, 1.0, 0.01) = 0.10;
uniform float tape_crease_speed: hint_range(-2.0, 2.0, 0.1) = 0.5;
uniform float tape_crease_discoloration: hint_range(0.0, 2.0, 0.1) = 1.0;

group_uniforms bottom_border;
uniform float bottom_border_thickness: hint_range(0.0,32.0, 0.1) = 6.0;
uniform float bottom_border_jitter: hint_range(0.0, 24.0, 0.5) = 6.0;

group_uniforms noise;
uniform float noise_intensity: hint_range(0.0, 1.0, 0.1) = 0.1;
uniform sampler2D noise_texture: filter_linear_mipmap, repeat_enable;

float v2random(vec2 uv) {
	return texture(noise_texture, mod(uv, vec2(1.0))).x;
}

mat2 rotate2D(float t) {
	return mat2(vec2(cos(t), sin(t)), vec2(-sin(t), cos(t)));
}

vec3 rgb2yiq(vec3 rgb) {
	return mat3(vec3(0.299, 0.596, 0.211), vec3(0.587, -0.274, -0.523), vec3(0.114, -0.322, 0.312)) * rgb;
}

vec3 yiq2rgb(vec3 yiq) {
	return mat3(vec3(1.0, 1.0, 1.0), vec3(0.956, -0.272, -1.106), vec3(0.621, -0.647, 1.703)) * yiq;
}

vec3 vhx_tex_2D(sampler2D tex, vec2 uv, float rot) {
	vec3 yiq = vec3(0.0);
	for (int i = 0; i < samples; i++) {
		yiq += rgb2yiq(texture(tex, uv - vec2(float(i), 0.0) / vhs_resolution).xyz) *
				vec2(float(i), float(samples - 1 - i)).yxx / float(samples - 1)
				/ float(samples) * 2.0;
	}
	if (rot != 0.0) {
		yiq.yz *= rotate2D(rot * tape_crease_discoloration);
	}
	return yiq2rgb(yiq);
}

void fragment() {
	vec2 uvn = UV;
	vec3 col = vec3(0.0, 0.0, 0.0);

	// Tape wave.
	uvn.x += (v2random(vec2(uvn.y / 10.0, TIME / 10.0) / 1.0) - 0.5) / vhs_resolution.x * 1.0;
	uvn.x += (v2random(vec2(uvn.y, TIME * 10.0)) - 0.5) / vhs_resolution.x * 1.0;

	// tape crease
	float tc_phase = smoothstep(0.9, 0.96, sin(uvn.y * 8.0 - (TIME * tape_crease_speed + tape_crease_jitter * v2random(TIME * vec2(0.67, 0.59))) * PI * 1.2));
	float tc_noise = smoothstep(0.3, 1.0, v2random(vec2(uvn.y * 4.77, TIME)));
	float tc = tc_phase * tc_noise;
	uvn.x = uvn.x - tc / vhs_resolution.x * 8.0 * tape_crease_smear;

	// switching noise
	float sn_phase = smoothstep(1.0 - bottom_border_thickness / vhs_resolution.y, 1.0, uvn.y);
	uvn.x += sn_phase * (v2random(vec2(UV.y * 100.0, TIME * 10.0)) - 0.5) / vhs_resolution.x * bottom_border_jitter;

	// fetch
	col = vhx_tex_2D(screen_texture, uvn, tc_phase * 0.2 + sn_phase * 2.0);

	// crease noise
	float cn = tc_noise * crease_noise * (0.7 * tc_phase * tape_crease_intensity + 0.3);
	if (0.29 < cn) {
		vec2 V = vec2(0.0, crease_opacity);
		vec2 uvt = (uvn + V.yx * v2random(vec2(uvn.y, TIME))) * vec2(0.1, 1.0);
		float n0 = v2random(uvt);
		float n1 = v2random(uvt + V.yx / vhs_resolution.x);
		if (n1 < n0) {
			col = mix(col, 2.0 * V.yyy, pow(n0, 10.0));
		}
	}

	// ac beat
	col *= 1.0 + 0.1 * smoothstep(0.4, 0.6, v2random(vec2(0.0, 0.1 * (UV.y + TIME * 0.2)) / 10.0));

	// color noise
	col *= 1.0 - noise_intensity * 0.5 + noise_intensity * texture(noise_texture, mod(uvn * vec2(1.0, 1.0) + TIME * vec2(5.97, 4.45), vec2(1.0))).xyz;
	col = clamp(col, 0.0, 1.0);

	// yiq
	col = rgb2yiq(col);
	col = vec3(0.9, 1.1, 1.5) * col + vec3(0.1, -0.1, 0.0) * filter_intensity;
	col = yiq2rgb(col);

	COLOR = vec4(col, 1.0);
}
Tags
analog, Post processing, retro, tape, VHS
