Warped Rotating Liquid Stripes

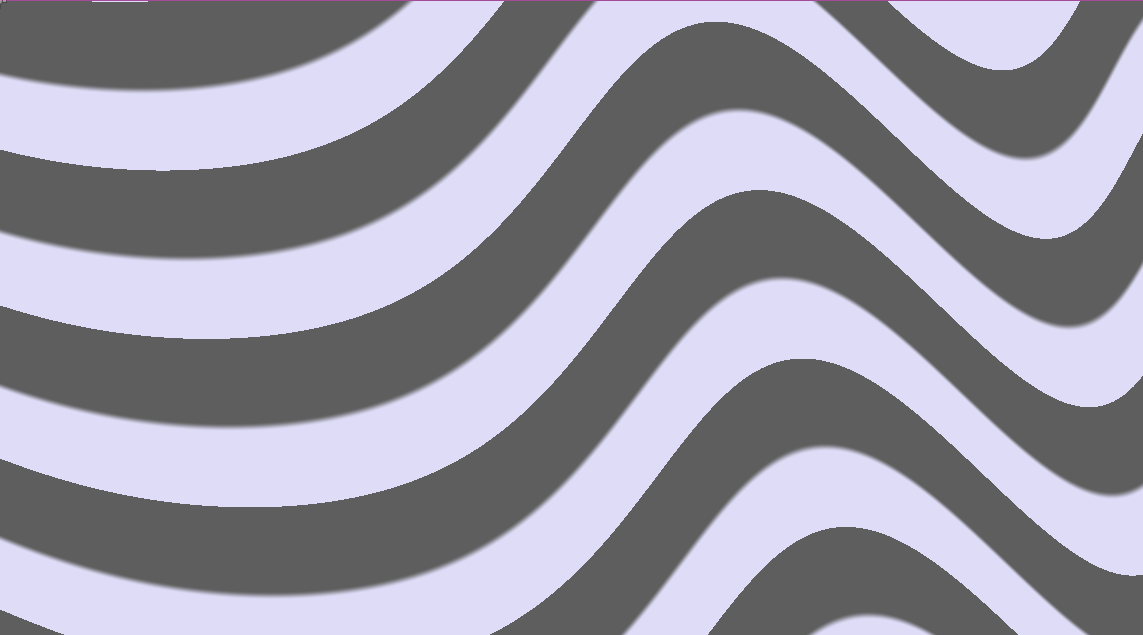

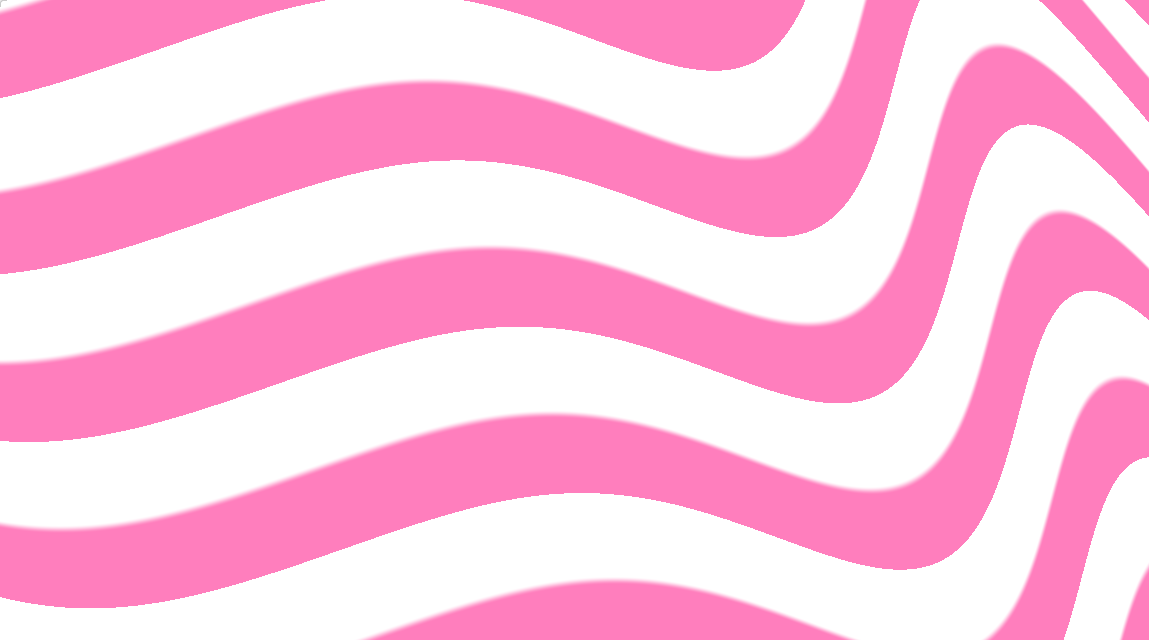

This is a simple yet dynamic procedural shader adapted for Godot’s CanvasItem that generates animated, rotating stripes with a liquid, sine-wave distortion. The stripes appear to undulate and breathe as they rotate around the screen’s center.

The effect is achieved by:

1. Rotation: Rotating the UV coordinates based on time.

2. Warping: Applying a complex sine wave function (osc) that uses both UV position and time to distort the Y-axis coordinates, creating the fluid, waving motion.

3. Tiling: Using the fract function on the warped coordinates multiplied by the stripes count to tile the pattern seamlessly.

4. Smoothing: Utilizing smoothstep to create smooth, anti-aliased edges for each stripe.

Adjustable Uniforms (Shader Parameters):

Shader code

shader_type canvas_item;

uniform float stripes = 4.82;
uniform float stripe_thickness = 1.33;
uniform vec3 stripe_color : source_color = vec3(0.59, .98, .69);
uniform vec3 background_color : source_color = vec3(0, 0, 0);


vec2 rot(vec2 uv, float angle) {
	float s = sin(angle);
	float c = cos(angle);
	mat2 rotation_matrix = mat2(vec2(c, s), vec2(-s, c));
	return uv * rotation_matrix;
}


void fragment() {
	vec2 uv = SCREEN_UV - 0.5;
	uv = rot(uv, -0.2 + sin(TIME) * 0.05);
	float osc = sin(uv.x * (uv.x + 0.5) * 15.0) * 0.2;
	uv.y += osc * sin(TIME + uv.x * 2.0);
	uv.y = fract(uv.y * stripes);
	float mask = smoothstep(0.5, 0.55, uv.y);
	mask -= smoothstep(0.5 + stripe_thickness, 0.55 + stripe_thickness, uv.y);
	vec3 final_color = mix(background_color.rgb, stripe_color.rgb, mask);
	COLOR = vec4(final_color, 1.0);
}
