Pixelated Warped Fractal Noise

All credit goes to Gerardo LCDF.

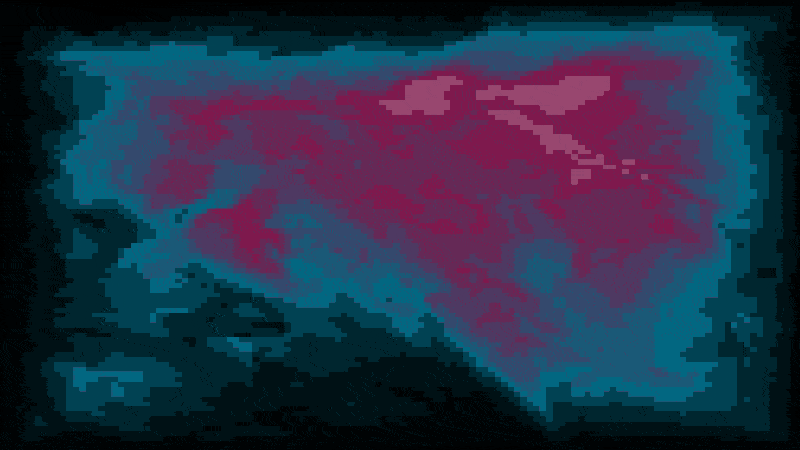

This is a modified version of the https://godotshaders.com/shader/warped-fractal-noise with added pixelation and background cutoff effect.

Suitable as an abstract background effect for a pixel game.



Shader code
// Pixelated noise effect based on https://godotshaders.com/shader/warped-fractal-noise/
//
// Copyright Gerardo Montaño 2025
//
// Permission is hereby granted, free of charge, to any person obtaining a copy of
// this software and associated documentation files (the “Software”), to deal in
// the Software without restriction, including without limitation the rights to
// use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies
// of the Software, and to permit persons to whom the Software is furnished to do
// so, subject to the following conditions:
//
// The above copyright notice and this permission notice shall be included in all
// copies or substantial portions of the Software.
//
// THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
// IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
// FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL
// THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
// LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
// OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
// SOFTWARE.

shader_type canvas_item;
uniform float speed = 0.1;

uniform float pixelation = 8.0;
uniform float zoom = 2.0;

uniform float gradient_pixelation : hint_range(0.001, 1.0) = 0.2;
uniform float background_threshold : hint_range(0.0, 1.0) = 0.0;
uniform float color_low_threshold : hint_range(0.0, 1.0)  = 0.24;
uniform float color_mid_threshold : hint_range(0.0, 1.0)  = 0.48;

uniform vec4 color_low : source_color = vec4(0.01, 0.41, 0.51, 1.0);
uniform vec4 color_mid : source_color = vec4(.50, 0.10, 0.30, 1.0);
uniform vec4 color_high : source_color = vec4(1.0, 1.0, 1.0, 1.0);

#define iTime (TIME * speed)
#define iResolution 1.0/SCREEN_PIXEL_SIZE

const mat2 mtx = mat2( vec2(0.80, -0.60), vec2(0.60, 0.80) );

float rand(vec2 n) {
    return fract(sin(dot(n, vec2(12.9898, 4.1414))) * 43758.5453);
}

float noise(vec2 p){
    vec2 ip = floor(p);
    vec2 u = fract(p);
    u = u * u * (3.0 - 2.0 * u);

    float res = mix(
        mix(rand(ip), rand(ip + vec2(1.0, 0.0)), u.x),
        mix(rand(ip + vec2(0.0, 1.0)), rand(ip + vec2(1.0, 1.0)), u.x), u.y);

    return res * res;
}

float fbm( vec2 p )
{
    float f = 0.0;

    f += 0.500000 * noise( p + iTime ); p = mtx * p * 2.02;
    f += 0.031250 * noise( p ); p = mtx * p * 2.01;
    f += 0.250000 * noise( p ); p = mtx * p * 2.03;
    f += 0.125000 * noise( p ); p = mtx * p * 2.01;
    f += 0.062500 * noise( p ); p = mtx * p * 2.04;
    f += 0.015625 * noise( p + sin(iTime) );

    return f / 0.96875;
}

float pattern( in vec2 p )
{
	return fbm( p + fbm( p + fbm( p ) ) );
}

vec4 colormap(float x, vec2 uv) {

	x *= (1.0 - pow(max(abs(0.5 - uv.x), abs(0.5 - uv.y)) * 2.0, 3.0));

    if (x < background_threshold) {
        return vec4(0.0, 0.0, 0.0, 0.0);
    }
    else if (x < color_low_threshold) {
        return mix(
			vec4(0.0, 0.0, 0.0, 0.0),
			color_low,
			round((x - background_threshold) / (color_low_threshold - background_threshold) / gradient_pixelation) * gradient_pixelation
		);
    }
    else if (x < color_mid_threshold) {
        return
			mix(
				color_low,
				color_mid,
				round((x - color_low_threshold) / (color_mid_threshold - color_low_threshold) / gradient_pixelation) * gradient_pixelation
			);
    }
	else
		return
			mix(
				color_mid,
				color_high,
				round((x - color_mid_threshold) / (1.0 - color_mid_threshold) / gradient_pixelation) * gradient_pixelation
			);
}

void fragment()
{
    vec2 uv = floor(UV / SCREEN_PIXEL_SIZE / pixelation) * SCREEN_PIXEL_SIZE * pixelation;
   	float shade = pattern(uv * zoom);

    COLOR = colormap(shade, uv);
}
Tags
2d, Abstract, animated, background, canvas, canvasitem, fbm, flow, fractal, godotshader, noise, Procedural, warped
The shader code and all code snippets in this post are under CC0 license and can be used freely without the author's permission. Images and videos, and assets depicted in those, do not fall under this license. For more info, see our License terms.
