Outline Shader (for stylized games)

Supports outline thickness and color. More options to tweak the outline for a clean character with no unnecessary lines.

Inspired by this outline shader

Shader code

shader_type spatial;
render_mode unshaded;

// pixel sampling radius

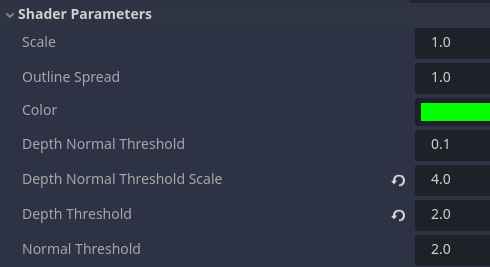

uniform float scale = 1.0;

// outline dilation after computation
uniform float outline_spread = 1.0;

uniform vec4 _Color : source_color = vec4(0.0, 1.0, 0.0, 1.0);

uniform float _DepthNormalThreshold = 0.1;
uniform float _DepthNormalThresholdScale = 3.;
uniform float _DepthThreshold = 1.5;
uniform float _NormalThreshold = 2.0;

uniform sampler2D SCREEN_TEXTURE : hint_screen_texture, filter_linear_mipmap, repeat_disable;
uniform sampler2D DEPTH_TEXTURE : hint_depth_texture, filter_linear_mipmap, repeat_disable;
uniform sampler2D normal_roughness_texture : hint_normal_roughness_texture, repeat_disable;

void fragment() {
    float half_scale_floor = floor(scale * 0.5);
    float half_scale_ceil = ceil(scale * 0.5);

    vec2 texel_size = vec2(1.0) / vec2(textureSize(SCREEN_TEXTURE, 0));

    // Compute UV coordinates
    vec2 bottom_left_uv  = SCREEN_UV - vec2(texel_size.x, texel_size.y) * half_scale_floor;
    vec2 top_right_uv    = SCREEN_UV + vec2(texel_size.x, texel_size.y) * half_scale_ceil;
    vec2 bottom_right_uv = SCREEN_UV + vec2(texel_size.x * half_scale_ceil, -texel_size.y * half_scale_floor);
    vec2 top_left_uv     = SCREEN_UV + vec2(-texel_size.x * half_scale_floor, texel_size.y * half_scale_ceil);

    // Normals
    vec3 normal0 = texture(normal_roughness_texture, bottom_left_uv).rgb;
    vec3 normal1 = texture(normal_roughness_texture, top_right_uv).rgb;
    vec3 normal2 = texture(normal_roughness_texture, bottom_right_uv).rgb;
    vec3 normal3 = texture(normal_roughness_texture, top_left_uv).rgb;

    // Depth
    float depth0 = texture(DEPTH_TEXTURE, bottom_left_uv).r;
    float depth1 = texture(DEPTH_TEXTURE, top_right_uv).r;
    float depth2 = texture(DEPTH_TEXTURE, bottom_right_uv).r;
    float depth3 = texture(DEPTH_TEXTURE, top_left_uv).r;

	vec3 viewNormal = normal0 * 2. - 1.;
	float NdotV = 1. - dot(viewNormal, VIEW);

	// Return a value in the 0...1 range depending on where NdotV lies
	// between _DepthNormalThreshold and 1.
	float normalThreshold01 = clamp(((NdotV - _DepthNormalThreshold) / (1. - _DepthNormalThreshold)),0.0,1.0);
	// Scale the threshold, and add 1 so that it is in the range of 1..._NormalThresholdScale + 1.
	float normalThreshold = normalThreshold01 * _DepthNormalThresholdScale + 1.;

	float depthThreshold = _DepthThreshold * depth0 * normalThreshold;

	float depthFiniteDifference0 = depth1 - depth0;
	float depthFiniteDifference1 = depth3 - depth2;

	float edgeDepth = sqrt(pow(depthFiniteDifference0, 2.) + pow(depthFiniteDifference1, 2.)) * 100.;
	edgeDepth = edgeDepth > depthThreshold ? 1. : 0.;

	vec3 normalFiniteDifference0 = normal1 - normal0;
	vec3 normalFiniteDifference1 = normal3 - normal2;

	float edgeNormal = sqrt(dot(normalFiniteDifference0, normalFiniteDifference0) + dot(normalFiniteDifference1, normalFiniteDifference1));
				edgeNormal = edgeNormal > _NormalThreshold ? 1. : 0.;

	float edge = max(edgeDepth, edgeNormal);

	float dilated_edge = edge;

	// Directional offsets for 4-neighbor dilation
	vec2 offsets[4] = vec2[](
	    vec2(texel_size.x, 0.0),
	    vec2(-texel_size.x, 0.0),
	    vec2(0.0, texel_size.y),
	    vec2(0.0, -texel_size.y)
	);

	float thickness = outline_spread;
	for (int i = 0; i < 4; i++) {
	    vec2 offset_uv = SCREEN_UV + offsets[i] * thickness;

	    float depth_n = texture(DEPTH_TEXTURE, offset_uv).r;
	    vec3 normal_n = texture(normal_roughness_texture, offset_uv).rgb;

	    float depth_diff = depth_n - depth0;
	    vec3 normal_diff = normal_n - normal0;

	    float edge_depth_n = (sqrt(depth_diff * depth_diff) * 100.0 > _DepthThreshold) ? 1.0 : 0.0;
	    float edge_normal_n = (length(normal_diff) > _NormalThreshold) ? 1.0 : 0.0;

	    dilated_edge = max(dilated_edge, max(edge_depth_n, edge_normal_n));
	}

	vec4 edgeColor = vec4(_Color.rgb, _Color.a * dilated_edge);

	ALBEDO = mix(texture(SCREEN_TEXTURE,SCREEN_UV).rgb, edgeColor.rgb, edgeColor.a);
	//ALBEDO = mix(vec3(0.0), edgeColor.rgb, edgeColor.a);

}
